mmWave Measurement Systems
CMT’s mmWave measurement systems offer an unparalleled combination of price, performance, flexibility, and size. CMT’s frequency extension solutions have been implemented by users in a variety of industries and applications including automotive, 5G, telecommunications, materials measurement, R&D, and more. The system can be anchored by the A2202-Fx 22 GHz VNA to deliver affordable testing capabilities. Featuring a high dynamic range of up to 133 dB, CMT’s frequency extension compatible VNAs work with any frequency extender to deliver highly accurate, reliable, and stable measurements up to 330 GHz. Configure a complete frequency extension system or pair a CMT VNA with any extender for affordable mmWave measurements.
As with all CMT solutions, mmWave measurement systems are backed by expert engineers who can help you design and perform unique and complex measurements.
New
A2202-Fx 2-Port 22 GHz Frequency Extension Compatible Vector Network Analyzer
100 kHz – 22 GHz
A2202-Fx 2-Port 22 GHz Frequency Extension Compatible Vector Network Analyzer
100 kHz – 22 GHz
- 133 dB Dynamic Range
- 12 µs/point Measurement Speed
- Compatible with ANY frequency extender
New
A2202-DFx 2-Port 22 GHz Direct Receiver Access and Frequency Extender Compatible Vector Network Analyzer
100 kHz – 22 GHz
A2202-DFx 2-Port 22 GHz Direct Receiver Access and Frequency Extender Compatible Vector Network Analyzer
100 kHz – 22 GHz
- 133 dB Dynamic Range
- 12 µs/point Measurement Speed
- Compatible with ANY frequency extender

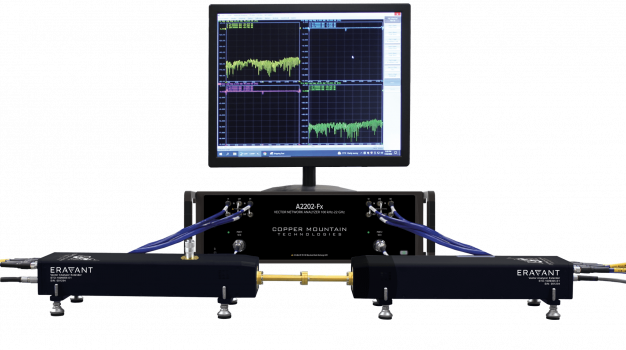

Integration: mmWave Solutions with Eravant
–
Integration: mmWave Solutions with Eravant
–
- Frequency Extender Integration
- Measurement Solutions up to 220 GHz
- Waveguide Accessories
Integration: Frequency Extension System with Virginia Diodes, Inc.
–
Integration: Frequency Extension System with Virginia Diodes, Inc.
–
- Frequency Extender Integration
- Measurement Solutions up to 330 GHz
Recommended Accessories:
WR-15 Calibration Kit – V Band
50 GHz – 75 GHz
WR-12 Calibration Kit – E Band
60 GHz – 90 GHz
WR-10 Calibration Kit – W Band
75 GHz – 110 GHz
CM24F Calibration Kit
DC – 50 GHz
CobaltFx 9 GHz 4′ FET RF Cable Kit
– 9 GHz
CobaltFx 20 GHz 4′ FET RF Cable Kit
– 20 GHz
WR-15 Proxi-Flange™
50 GHz – 75 GHz
WR-12 Proxi-Flange™
60 GHz – 90 GHz
WR-10 Proxi-Flange™
75 GHz – 110 GHz
WR-08 Proxi-Flange™
90 GHz – 140 GHz
WR-06 Proxi-Flange™
110 GHz – 170 GHz
WR-05 Proxi-Flange™
140 GHz – 220 GHz
Wave-Glide™ Rail Positioning System
–
Waveguide Quick Connect
–
Waveguide Quick Connect with Stand
–
Pacific Antenna Systems Case Study
The Advanced Series VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test software plug-in is available to integrate the VNA into your production test system.
