R60 1-Port 6 GHz Analyzer
MSRP $ 4,495.00 USD
1 MHz - 6 GHz
- - Frequency range: 1 MHz to 6 GHz
- - Measured parameters: S11, as Log magnitude, DTF, Smith, and more
- - Sweep types: Linear frequency, log frequency, segment
- - Effective Directivity: 46 dB
- - Measurement speed: 100 µs
- - Impedance: 50 Ohm

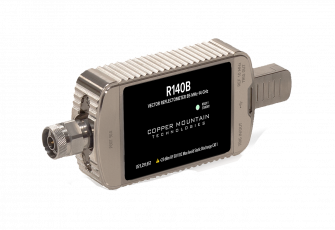

R140B 1-Port 14 GHz Analyzer
MSRP $ 6,995.00 USD
85 MHz - 14 GHz
- - Frequency range: 85 MHz to 14 GHz
- - Measured parameters: S11 as Log magnitude, DTF, Smith, and more
- - Sweep types: Linear frequency, log frequency, segment
- - Impedance: 50 Ohm
R180 1-Port 18 GHz Analyzer
MSRP $ 12,495.00 USD
1 MHz - 18 GHz
- - Frequency range: 1 MHz to 18 GHz
- - Measured parameters: S11 as Log magnitude, DTF, Smith, and more
- - Sweep types: linear frequency, log frequency, segment
- - Effective Directivity: 42 dB
- - Measurement speed: 100 µs
- - Impedance: 50 Ohm
Epsilometer - Dielectric Materials Measurement
3 MHz - 6 GHz
- - Frequency range: 3 MHz to 6 GHz
- - Impedance: 50 Ohm
PXIe-S5090 2-Port 9 GHz Analyzer
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Measured parameters: S11, S21, S12, S22
- - Impedance: 50 Ohm
TR1300/1 2-Port 1.3 GHz Analyzer
MSRP $ 3,995.00 USD
300 kHz - 1.3 GHz
- - Frequency range: 300 kHz to 1.3 GHz
- - Measured parameters: S11, S21
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 150 µs
- - Impedance: 50 Ohm
M5045 2-Port 4.5 GHz Analyzer
MSRP $ 9,495.00 USD
300 kHz - 4.5 GHz
- - Frequency range: 300 kHz to 4.5 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: linear frequency, log frequency, segment, power sweep
- - Impedance: 50 Ohm
M5065 2-Port 6.5 GHz Analyzer
MSRP $ 10,495.00 USD
300 kHz - 6.5 GHz
- - Frequency range: 300 kHz to 6.5 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 70 µs
- - Impedance: 50 Ohm
M5090 2-Port 8.5 GHz Analyzer
MSRP $ 12,995.00 USD
300 kHz - 8.5 GHz
- - Frequency range: 300 kHz to 8.5 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 70 µs
- - Impedance: 50 Ohm
M5180 2-Port 18 GHz Analyzer
MSRP $ 20,995.00 USD
300 kHz - 18 GHz
- - Frequency range: 300 kHz to 18 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 30 µs
- - Impedance: 50 Ohm
S5045 2-Port 4.5 GHz Analyzer
MSRP $ 13,995.00 USD
9 kHz - 4.5 GHz
- - Frequency range: 9 kHz to 4.5 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Impedance: 50 Ohm
S5065 2-Port 6.5 GHz Analyzer
MSRP $ 15,995.00 USD
9 kHz - 6.5 GHz
- - Frequency range: 9 kHz to 6.5 GHz
- - Measured parameters: S11, S12, S21, S22
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 70 µs
- - Impedance: 50 Ohm
S5085 2-Port 8.5 GHz Analyzer
MSRP $ 17,995.00 USD
9 kHz - 8.5 GHz
- - Frequency range: 9 kHz to 8.5 GHz
- - Measured parameters: S11, S12, S21, S22
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 70 µs
- - Impedance: 50 Ohm
- - Measurement type: Full S-parameter matrix
S5180B 2-Port 18 GHz Analyzer
MSRP $ 27,995.00 USD
100 kHz - 18 GHz
- - Frequency range: 100 kHz to 18 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 24 µs
- - Impedance: 50 Ohm
S5243 2-Port 44 GHz Analyzer
MSRP $ 62,995.00 USD
10 MHz - 44 GHz
- - Frequency range: 10 MHz to 44 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: Linear frequency, log frequency, segment, power sweep
- - Dynamic range: 130 dB
- - Measurement speed: 17 µs
- - Impedance: 50 Ohm
SC5065 2-Port 6.5 GHz Analyzer
MSRP $ 18,495.00 USD
300 kHz - 6.5 GHz
- - Frequency range: 300 kHz to 6.5 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: Linear frequency sweep and logarithmic frequency sweep are performed with fixed output power. Linear power sweep is performed at a fixed frequency.
- - Effective Directivity: 46 dB
- - Dynamic range: 140 dB
- - Measurement speed: 16 µs
- - Impedance: 50 Ohm
SC5090 2-Port 9 GHz Analyzer
MSRP $ 20,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Measured parameters: S11, S21, S12, S22
- - Sweep types: Linear frequency sweep and logarithmic frequency sweep are performed with fixed output power. Linear power sweep is performed at a fixed frequency.
- - Effective Directivity: 46 dB
- - Dynamic range: 140 dB
- - Measurement speed: 16 µs
- - Impedance: 50 Ohm

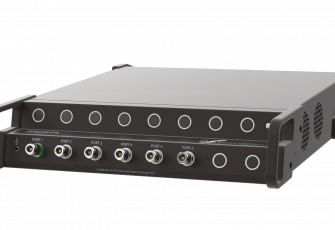

SN0906 6-Port 9GHz Analyzer
MSRP $ 43,495.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Measured parameters: All S-Parameters
- - Dynamic range: 140 dB
- - Measurement speed: 24 µs
- - Impedance: 50 Ohm
SN0908 8-Port 9 GHz Analyzer
MSRP $ 57,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Dynamic range: 140 dB
- - Measurement speed: 24 µs
- - Impedance: 50 Ohm
SN0910 10-Port 9 GHz Analyzer
MSRP $ 69,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Dynamic range: 140 dB
- - Measurement speed: 23 µs
- - Impedance: 50 Ohm
SN0912 12-Port 9GHz Analyzer
MSRP $ 79,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Dynamic range: 140 dB
- - Measurement speed: 23 µs
- - Impedance: 50 Ohm
SN0914 14-Port 9GHz Analyzer
MSRP $ 83,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Dynamic range: 140 dB
- - Measurement speed: 24 µs
- - Impedance: 50 Ohm

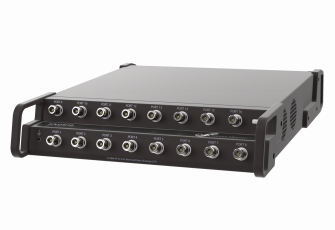

SN0916 16-Port 9GHz Analyzer
MSRP $ 89,995.00 USD
300 kHz - 9 GHz
- - Frequency range: 300 kHz to 9 GHz
- - Dynamic range: 140 dB
- - Measurement speed: 24 µs
- - Impedance: 50 Ohm
C1209 2-Port 9 GHz Analyzer
MSRP $ 27,495.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11, S12, S21, S22
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm
C2209 2-Port 9 GHz Analyzer, Direct Receiver Access
MSRP $ 33,495.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11, S21, S12, S22
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm
C4209 2-Port 9 GHz Analyzer, Frequency Extension Compatible
MSRP $ 29,995.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11, S21, S12, S22
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm
C1409 4-Port 9 GHz Analyzer
MSRP $ 37,995.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm
C2409 4-Port 9 GHz Analyzer, Direct Receiver Access
MSRP $ 40,995.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm
C4409 4-Port 9 GHz Analyzer, Frequency Extension Compatible
MSRP $ 39,995.00 USD
100 kHz - 9 GHz
- - Frequency range: 100 kHz to 9 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 46 dB
- - Dynamic range: 152 dB
- - Measurement speed: 10 µs
- - Impedance: 50 Ohm

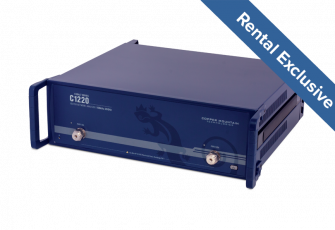

C1220 2-Port 20 GHz Analyzer
MSRP $ 47,495.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11, S12, S21, S22
- - Effective Directivity: 10 MHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB
- - Dynamic range: 133 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm

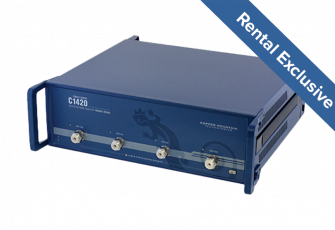

C1420 4-Port 20 GHz Analyzer
MSRP $ 56,995.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 100 kHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB
- - Dynamic range: 133 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm
C2220 2-Port 20 GHz Analyzer, Direct Receiver Access
MSRP $ 51,995.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11, S12, S21, S22
- - Effective Directivity: 10 MHz to 10 GHz: 46 dB. 10 GHz to 20 GHz: 42 dB
- - Dynamic range: 130 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm
C4220 2-Port 20 GHz Analyzer, Frequency Extension Compatible
MSRP $ 53,995.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11, S21, S12, S22
- - Effective Directivity: 46dB
- - Dynamic range: 133 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm
C2420 4-Port 20 GHz Analyzer, Direct Receiver Access
MSRP $ 58,995.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 100 kHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB
- - Dynamic range: 130 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm
C4420 4-Port 20 GHz Analyzer, Frequency Extension Compatible
MSRP $ 59,495.00 USD
100 kHz - 20 GHz
- - Frequency range: 100 kHz to 20 GHz
- - Measured parameters: S11,…S44
- - Effective Directivity: 100 kHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB
- - Dynamic range: 133 dB
- - Measurement speed: 12 µs
- - Impedance: 50 Ohm
RF Teaching Kit - 3 GHz
MSRP $ 1,995.00 USD
- 3 GHz
- - Frequency range: - to 3 GHz
- - Impedance: 50 Ohm
RF Teaching Kit - 8 GHz
MSRP $ 1,995.00 USD
- 8 GHz
- - Frequency range: - to 8 GHz
- - Impedance: 50 Ohm
Manufacturing Test Plug-in
-
- - Impedance: 50 Ohm
Automatic Fixture Removal Plug-in
MSRP $ 5,495.00 USD
-
- - Impedance: 50 Ohm
