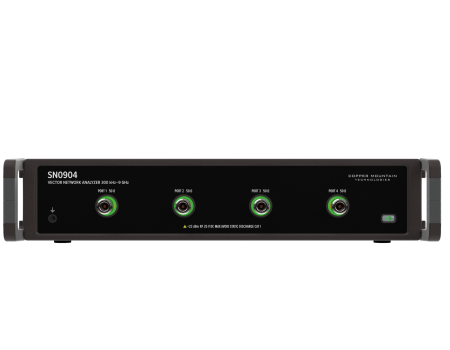

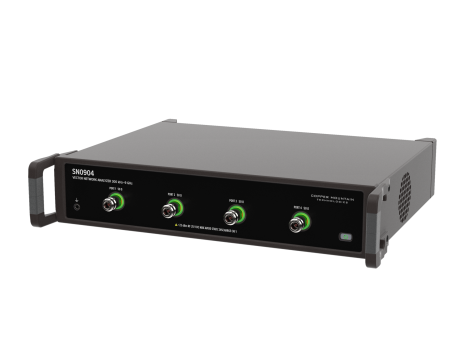

SN0904 4-Port 9 GHz Vector Network Analyzer
The SN0904 is a 4-port 9 GHz VNA (Vector Network Analyzer) designed for reliable test & measurement for daily engineering needs. Supporting full 4-port 2-path measurements up to 16 S-Parameters (S11-S44) with our advanced measurement software included in purchase, this instrument is suited for RF component production, aerospace & defense, medical devices, telecommunications, and automotive applications.
VNAs and ACMs are delivered with factory calibration certificates. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.
The Copper Mountain Technologies SN0904 is compatible with S4 VNA software for Windows PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S4 software can be installed license free on multiple computers, making it easy and secure for shared use of the vector network analyzer.
| Frequency range | 300 kHz to 9 GHz |
| Measurement speed | 24 µs per point |
| Dynamic range: | |
| 300 kHz to 5 MHz | 110 dB (125 dB typ. |
| 5 MHz to 6 GHz | 135 dB (140 dB typ. |
| 6 GHz to 9 GHz | 122 dB (130 dB typ.) |
| Output power range: | |
| 300 kHz to 6 GHz | -45 dBm to +10 dBm |
| 6 GHz to 9 GHz | -45 dBm to +2 dBm |
| Number of measurement points: | 2 to 500,001 |
SN0904 provides reliable S-Parameters verification up to 4-ports of RF components such as directional couplers, 2-way power splitters and combiners, and diplexers/duplexers, and differential line signal integrity of PCB transmission line coupons. Capable of full remote control using SCPI commands and operating on license-free software that supports multiple stations, it’s an excellent test & measurement solution for production and lab environments.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
The SN0904 VNA comes with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode (mixer, frequency converter measurement)
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.
