Select Series VNAs

Portable, full-featured VNAs for R&D, production, and materials measurement with 2-port options available up to 18 GHz and multiport configurations from 6-16-ports up to 9 GHz. These VNAs include all the advanced software features and functionality engineers have come to expect from CMT, like time domain and gating, at no additional cost.

License-free VNA software that supports shared use across teams
2- to 16-port vector network analyzers
Windows and Linux compatible software
Seamless integration with automated test systems via our Manufacturing Test plug-in
Simultaneously measure full S-parameter matrices with multiport VNA models

Compatible with:

2-Port Select Series VNAs

SC5065 2-Port 6.5 GHz Vector Network Analyzer

300 kHz – 6.5 GHz

6.5 GHz Max Frequency
140 dB dynamic range
16 µs per point measurement speed

SC5090 2-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

9 GHz Max Frequency
140 dB dynamic range
16 µs per point measurement speed

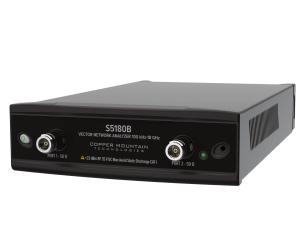

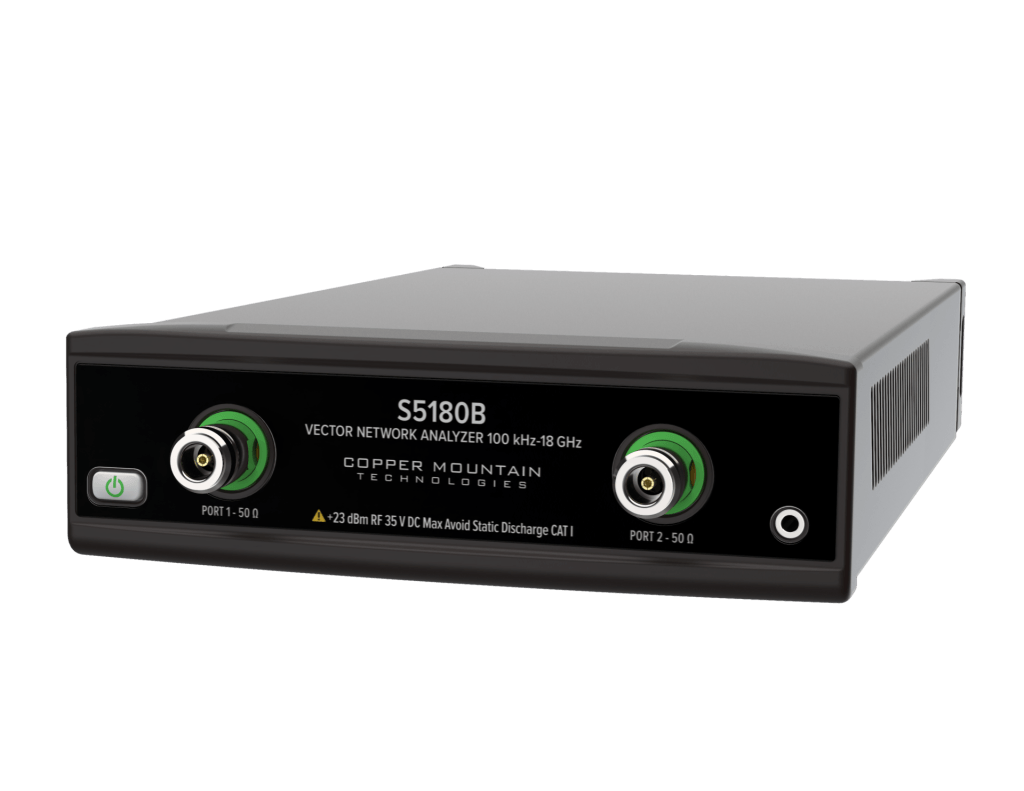

S5180B 2-Port 18 GHz Vector Network Analyzer

100 kHz – 18 GHz

130 dB dynamic range
24 µs per point measurement speed
Pulse modulation generation/measurement capabilities (paid software option)

Multiport Select Series VNAs

New

SN0906 6-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

6-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

New

SN0908 8-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

8-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

New

SN0910 10-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

10-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

New

SN0912 12-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

12-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

New

SN0914 14-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

14-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

New

SN0916 16-Port 9 GHz Vector Network Analyzer

300 kHz – 9 GHz

16-Ports
140 dB dynamic range
24 µs per point measurement speed
Hardware can fit a 19″ rack

Select Series VNA Software

2-Port Select Series VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:

Linear/logarithmic sweeps with multiple trace formats
Power sweeps
Time domain and gating conversion
Frequency offset mode
Fixture simulation (embedding/de-embedding)
16 independent channels with up to 16 traces each
Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
Test Automation programming in LabView, Python, MATLAB, .NET, etc.

CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.

*Software for multiport VNAs is only available on request. Please complete the below form to receive download files.
