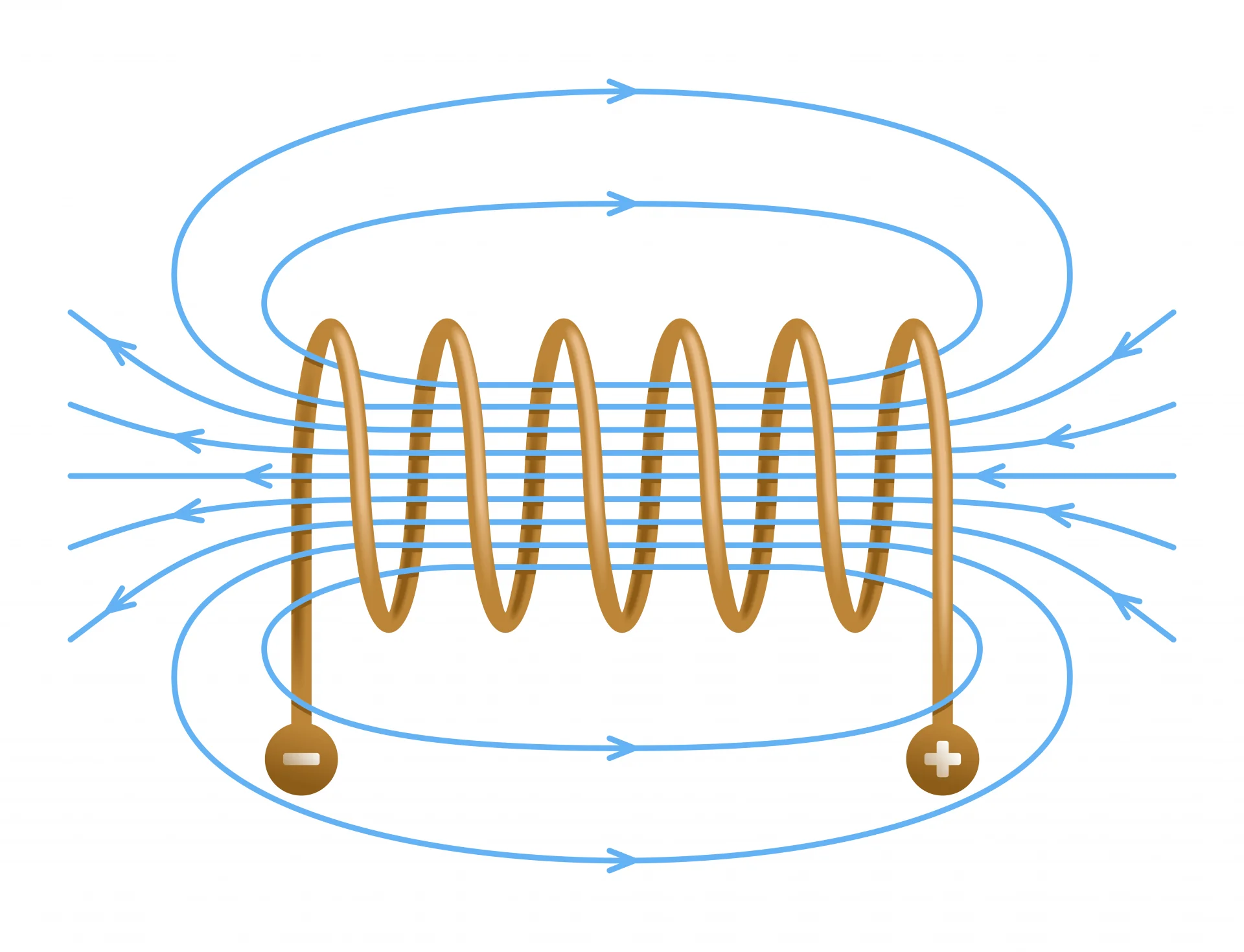

### What is the Inductance of a Solenoid (Coiled Wire)?

July 24, 2023The inductance of a solenoid is approximately:

Where r is the radius in inches, l is the length in inches, and n is the number of turns.

It may also be calculated more precisely from this equation (from Ampere’s Law) with similar results:

Where μ is free space permeability 4π*10^{-7} H/m

n is the number of turns

A is the cross-sectional area in m^{2}l is the length of the coil in meters

See this and more important radio frequency charts and formulas in this comprehensive application note.
