Millimeter-Wave Measurements

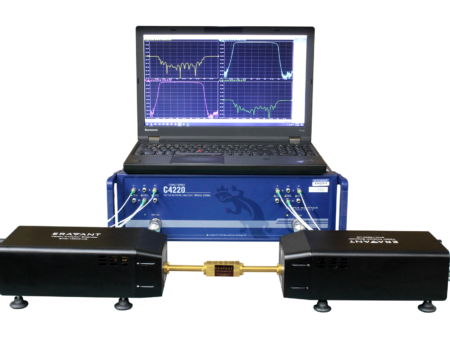

Eravant, formerly SAGE Millimeter, is a company that strives to make millimeter wave and sub-THz frequencies accessible by lowering budget, knowledge, and experience barriers. With an estimated 5,000 products, Eravant is known for supporting the customer every step of the way from lab set-up, to R&D and prototype, and through program or volume production. Copper Mountain Technologies and Eravant have partnered to deliver co-branded frequency extender modules covering measurements from 50-110 GHz. The extenders are anchored by CMT’s 9 GHz CobaltFx compatible VNAs to deliver a cost-effective frequency extension system with options for output power adjustment and high output power. Eravant also has calibration kits available for all waveguide bands. Relevant accessories include a Wave Glide™ rail system for a simplified easy-to-use setup, Waveguide Quick Connect™ for streamlined calibration, and Proxi-Flanges™ to facilitate a more reliable and accurate test setup.
Eravant is located in Torrance, California and operates from a 60,000-square-foot design, manufacturing, assembly, and testing facility focused on supplying a global customer base with millimeter wave and sub-THz (18 to 330 GHz) components, subassemblies, and test equipment. The company also offers several value-added services such as custom design, enhanced RF measurements, environmental testing, and build-to-print. Eravant is an AS9100 Rev. D certified, ITAR-registered, women-owned small business designing and manufacturing in the United States.
Copper Mountain Technologies’ VNAs compatible with Eravant mmWave Measurement Solutions:
C2409 4-Port 9 GHz Analyzer, Direct Receiver Access
100 kHz – 9 GHz
C4409 4-Port 9 GHz Analyzer, Frequency Extension Compatible
100 kHz – 9 GHz
CobaltFx FET-WR15 Frequency Extension Module, V Band
50 GHz – 75 GHz
CobaltFx FET-WR12 Frequency Extension Module, E Band
60 GHz – 90 GHz
CobaltFx FET-WR10 Frequency Extension Module, W Band
75 GHz – 110 GHz
CobaltFx FET-WR15-HP Frequency Extension Module, V Band
50 GHz – 75 GHz
CobaltFx FET-WR12-HP Frequency Extension Module, E Band
60 GHz – 90 GHz
CobaltFx FET-WR10-HP Frequency Extension Module, W Band
75 GHz – 110 GHz
CobaltFx FET-WR08 Frequency Extension Module, F Band
90 GHz – 140 GHz
CobaltFx FET-WR06 Frequency Extension Module, D Band
110 GHz – 170 GHz
CobaltFx FET-WR15 Tx Extenders
50 GHz – 75 GHz
CobaltFx FET-WR15-Rx Extenders
50 GHz – 75 GHz
CobaltFx FET-WR12 Tx Extenders
60 GHz – 90 GHz
CobaltFx FET-WR12 Rx Extenders
60 GHz – 90 GHz
CobaltFx FET-WR10 Tx Extenders
75 GHz – 110 GHz
CobaltFx FET-WR10 Rx Extenders
75 GHz – 110 GHz
CobaltFx FET-WR08 Tx Extenders
90 GHz – 140 GHz
CobaltFx FET-WR08 Rx Extenders
90 GHz – 140 GHz
CobaltFx FET-WR06 Tx Extenders
110 GHz – 170 GHz
CobaltFx FET-WR06 Rx Extenders
110 GHz – 170 GHz
CobaltFx FET-WR05 Tx Extenders
150 GHz – 220 GHz
CobaltFx FET-WR05 Rx Extenders
150 GHz – 220 GHz
