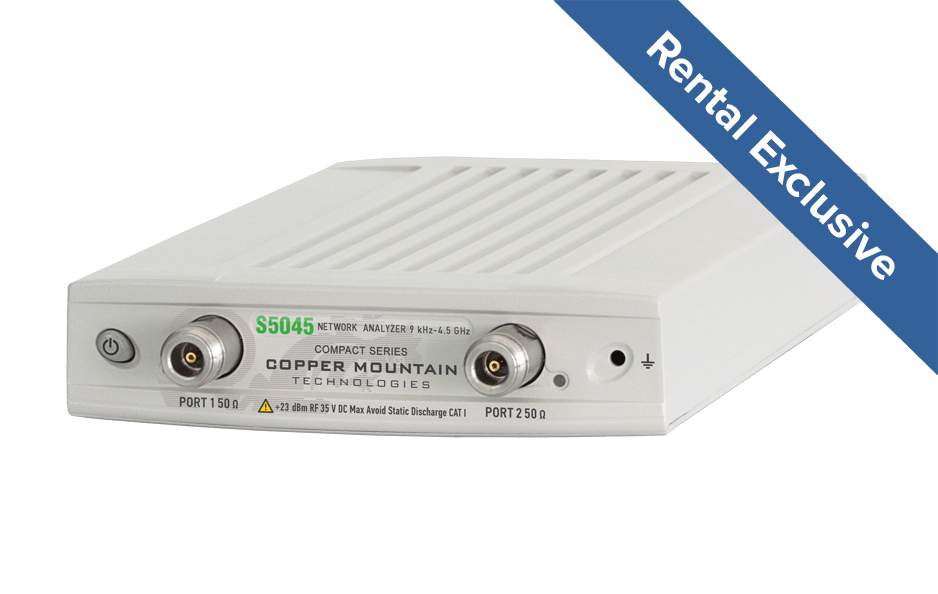

Rental Exclusive: S5045 2-Port 4.5 GHz Vector Network Analyzer

Rental Exclusive: S5045 2-Port 4.5 GHz Vector Network Analyzer

This product is available for rental only. Copper Mountain Technologies announced an End-of-Sale (EOS) for the S5045 2-Port 4.5 GHz VNA. This product is no longer available for purchase, and is now exclusively available to rent, as of November 8, 2024. We will provide service and repair for owners of this instrument for a minimum of 3 years from the EOS date or based on parts availability. The replacement for this model is the SC5065 2-Port 6.5 GHz VNA .

This portable 60 oz. vector network analyzer can be battery powered and used in the field, in the laboratory, and in production testing. The VNA can be integrated into a production test system via Manufacturing Test plug-in.

Unsure which Compact VNA is best for your application? Check out our Compact VNA comparison here.

Frequency range	9 kHz to 4.5 GHz
Measured parameters	S11, S21, S12, S22
Sweep Types	linear frequency, log frequency, segment, power sweep
Dynamic range	130 dB typ. (10 Hz IF BW)
Measurement speed	70 µs
Output power adjustment range	-55 dBm to +5 dBm
Measurement points per sweep	up to 200,001

Datasheets

Extended Specification Sheet

Applications of the S5045 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.

If you want to consult with our engineers about your specific application, please Ask an Engineer.

The S5045 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:

Linear/logarithmic sweeps with multiple trace formats
Power sweeps
Time domain and gating conversion
Frequency offset mode
Fixture simulation (embedding/de-embedding)
16 independent channels with up to 16 traces each
Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
Test Automation programming in LabView, Python, MATLAB, .NET, etc.

CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.

Datasheets

Extended Specification Sheet

STEP File

S5045 STEP File

Manuals

S2VNA Online Help | Download S2VNA Documentation

Software

S2 VNA Windows Software | S2 Windows Software Release Notes | S2 VNA Linux Software

Testing Automation

Programming Examples | Programming Guides | S2 LabVIEW Drivers

Plug-ins
