Discontinued: S5085 2-Port 8.5 GHz Analyzer
Copper Mountain Technologies announced an End-of-Sale (EOS) for the S5085 2-Port 8.5 GHz Analyzer. This product is no longer available for purchase as of November 8, 2024. We will provide service and repair for this instrument for a minimum of 3 years from the EOS date and based on parts availability afterwards. The SC5090 2-Port 9 GHz Analyzer is the recommended alternative for the S5085.

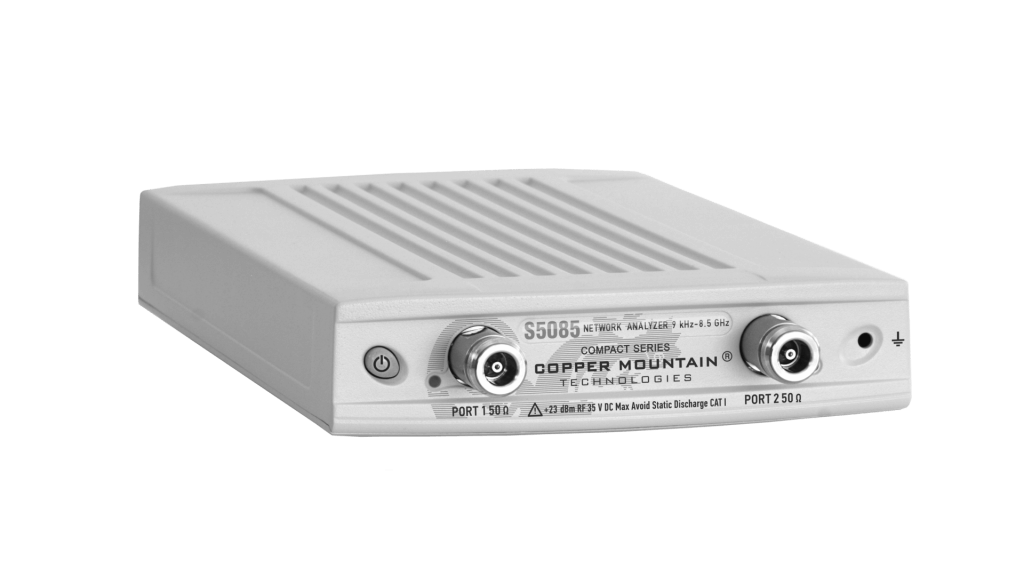

The S5085 Vector Network Analyzer delivers lab grade performance in a compact package, with all the features engineers have come to expect included standard in our software.
This portable 60 oz. vector network analyzer can be battery powered and used in the field, in the laboratory, and in production testing. The VNA can be integrated into a production test system via Manufacturing Test plug-in.
Unsure which Compact VNA is best for your application? Check out our Compact VNA comparison here.
Applications of the S5085 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
The S5085 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.
