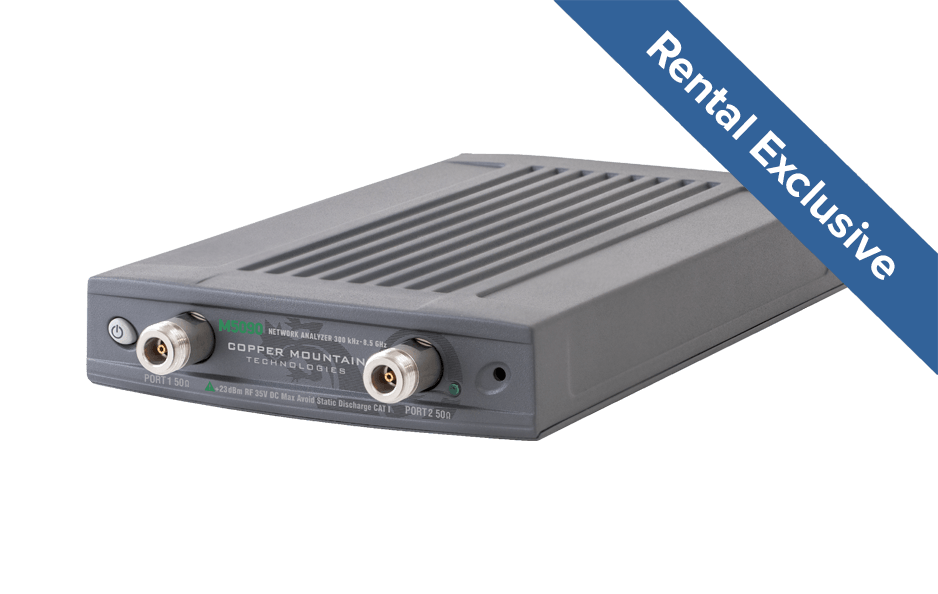

The M5090 is a 2-port, 8.5 GHz Vector Network Analyzer that delivers metrology-grade performance in a more economical package. To be more cost-effective, it excludes a number of advanced features while retaining core functionality.

Included:

• Linear/logarithmic sweeps with multiple trace formats
• Power sweeps
• Fixture simulation (embedding/de-embedding)
• 16 independent channels with up to 16 traces each
• Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
• Test Automation programming in LabView, Python, MATLAB, .NET, etc.

Not Included:

• Vector Mixer Calibration
• TRL Calibration
• Frequency Offset
• Time Domain
• Gating

VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

M5090 VNA includes an RF measurement module and S2 Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.
