Discontinued: S7530 2-Port 75 Ohm 3 GHz Analyzer
Copper Mountain Technologies announced an End-of-Sale (EOS) for the S7530 2-Port 75 Ohm 3 GHz Analyzer. This product is no longer available for purchase as of June 21, 2024. We will provide service and repair for this instrument for a minimum of 3 years from the EOS date and based on parts availability afterwards. The SC7540 2-Port 75 Ohm 4 GHz Vector Network Analyzer is the recommended alternative for the S5045.

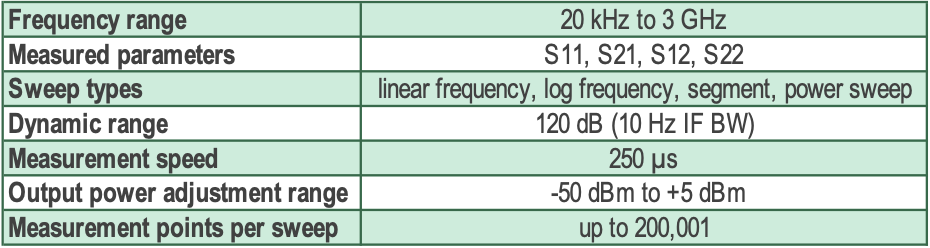

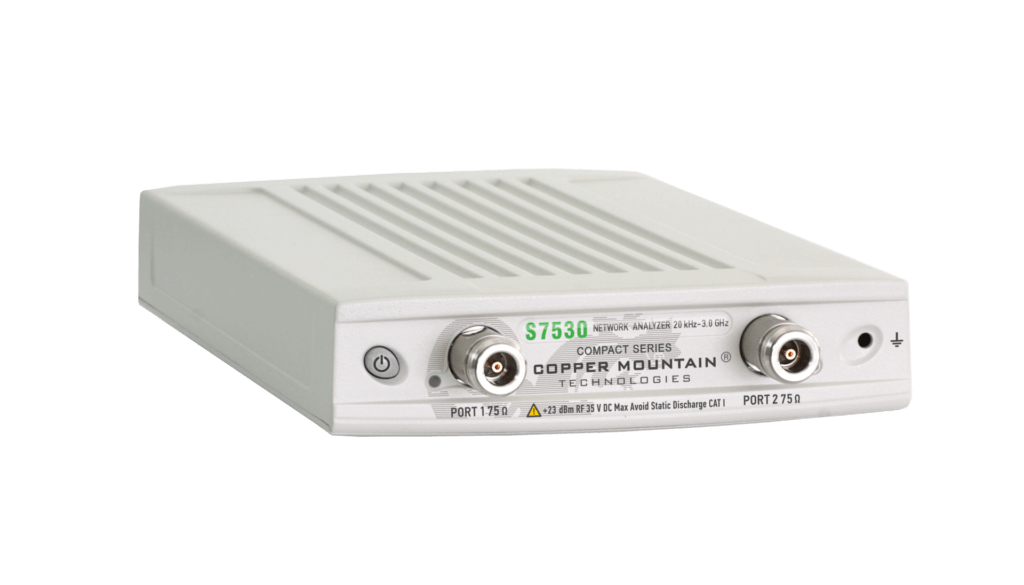

The S7530 75 Ohm Vector Network Analyzer delivers lab grade performance in a compact package, with all the features engineers have come to expect included standard in our software.
This portable 1.3 kg/46 oz. vector network analyzer can be used in the field, in the laboratory, and in production testing. The VNA can be integrated into a production test system via Manufacturing Test plug-in.
S7530 VNA includes an RF measurement module and S2 software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.
VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.
Unsure which Compact VNA is best for your application? Check out our Compact VNA comparison here.
Applications of the S7530 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others. The S7530 is used particularly in the broadcasting industry where the standard line impedance is often 75 Ohms.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
The S7530 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.
Datasheets
Manuals
S2 & S4 Programming Manual (COM) | S2 & S4 Programming Manual (SCPI) | S2 Operating Manual
Software
S2 VNA Windows Software | S2 Windows Software Release Notes | S2 VNA Linux Software
Testing Automation
Programming Examples | Programming Guides | S2 LabVIEW Drivers
Plug-ins
