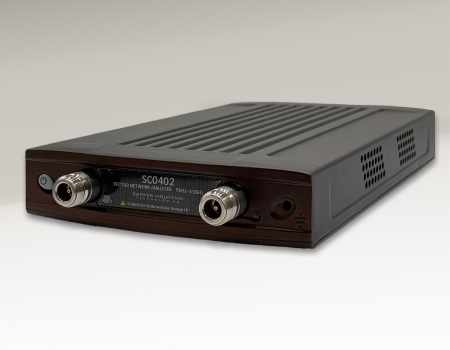

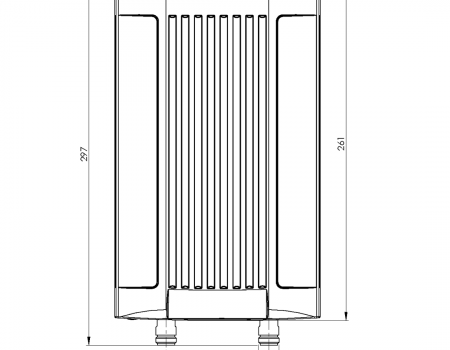

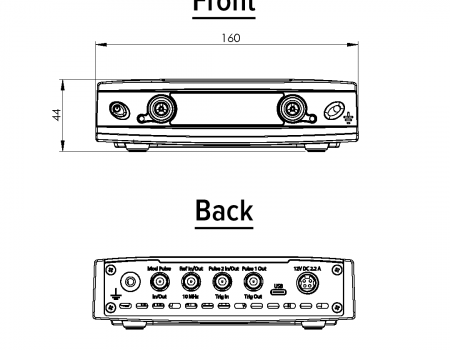

SC0402 2-Port 4.5 GHz Vector Network Analyzer
The SC0402 is a 2-Port 4.5 GHz VNA (Vector Network Analyzer) designed for daily engineering and production workflows, offering excellent dynamic range, fast measurement speed, and high output power in a compact package, with the maximum standard software feature set enabled.
VNAs and ACMs are delivered with factory calibration certificates. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

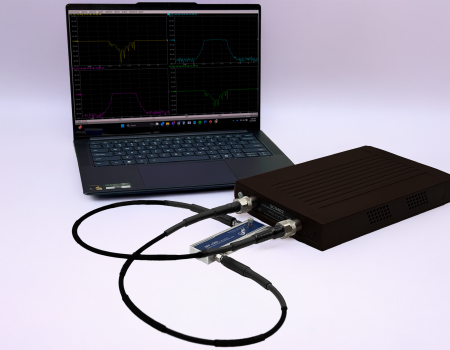

The Copper Mountain Technologies SC0402 VNA includes an RF measurement module and S2 VNA software for Windows PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. Linux OS support is also available for this product upon request and based on user requirements. S2 software can be installed license free on multiple computers, making it easy and secure for shared use of the vector network analyzer.
| Frequency range | 9 kHz to 4.5 GHz |
| Measured parameters | S11, S21, S12,S22 |
| Sweep Types | linear frequency, log frequency, segment, power sweep |
| Dynamic range | 130 dB typ. (10 Hz IF BW) |
| Output power adjustment range | -50 dBm to +5 dBm |
| Measurement time per point | 25 µs typ. |
| Number of measurement points | up to 500,001 |
Datasheets
SC0402 supports design, development, verification, and manufacturing workflows for components, devices, and complex systems. Key applications include RF component manufacturing, power plane integrity and impedance measurement, and solutions for telecommunications, automotive, IoT, aerospace, medical devices, anti-drone defense manufacturing, and quantum computing research.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
The SC0402 VNA comes with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode (mixer, frequency converter measurement)
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.
