Copper Mountain Technologies VNAs

Vector Network Analyzers and monitor

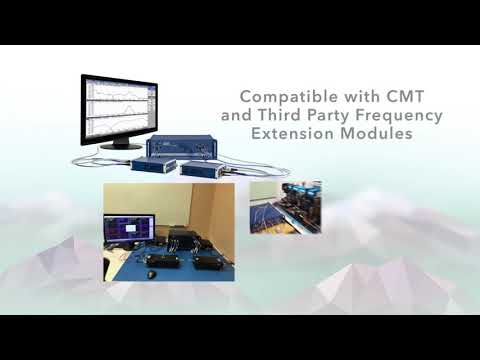

Copper Mountain Technologies has a range of VNAs and frequency extender modules from 9 kHz to 110 GHz and is compatible with third-party extenders up to 330 GHz.



One of the easiest ways to get to know Copper Mountain Technologies’ VNAs is to explore the instruments directly. That’s made even easier when you download free demo VNA software below. All our VNA applications contain built-in emulator modes for each supported instrument.



Free Windows and Linux software is available to download on the CMT website at any time with features such as Time Domain with Gating, Advanced TRL Calibration, Scalar and Vector Mixer Measurements included at no extra charge.* And since the software is used on a computer removed of the measurement module, if the computer becomes obsolete or needs to be replaced, it is just a matter of getting a new one and the VNA is unaffected by it.



With a CMT vector network analyzer, the unit can easily and securely be shared since all software and data is stored on an individual user’s computer and not the measurement module.

Old VNA image

1-Port VNA Series (cable and antenna analyzer) delivers lab-grade performance in a handheld device. Our patented 1-Port VNAs (cable and antenna analyzers) perform lab quality measurements connecting directly to the DUT without the need for a test cable (Patent US 9,291,657). The result is increased accuracy and quality of VNA measurements with a handheld instrument. The 1-Port VNA comes with all the features engineers have come to expect included standard in our software.



Our Compact USB Vector Network Analyzers deliver lab grade performance in a compact package, while still providing all the features engineers expect included standard in our software: linear/logarithmic sweeps with multiple trace formats, power sweeps, time domain and gating conversion, frequency offset mode, fixture simulation (embedding/de-embedding), 16 independent channels with up to 16 traces each, markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.



Our Cobalt Vector Network Analyzers deliver industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software: linear/logarithmic sweeps with multiple trace formats, power sweeps, time domain and gating conversion, frequency offset mode, fixture simulation (embedding/de-embedding), 16 independent channels with up to 16 traces each, markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc. We offer the Cobalt series in both 9 GHz and 20 GHz. The VNAs have the base models, a Direct Receiver Access (DRA) models, and Frequency Extension compatible models.



CobaltFx cost-effective millimeter wave frequency extension system allows you to build a scalable and affordable 5G testing solution.



*M Series VNAs do not include all advanced software features.
