Advanced Series VNAs

Our Advanced Series vector network analyzers deliver industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software: linear/logarithmic sweeps with multiple trace formats, power sweeps, time domain and gating conversion, frequency offset mode, fixture simulation (embedding/de-embedding), 16 independent channels with up to 16 traces each, markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc. We offer the Advanced Series in both 9 GHz and 22 GHz. The options are the base VNA models, Direct Receiver Access (DRA) models, and Frequency Extension compatible models. The 22 GHz option has a model with both DRA and Frequency Extension compatibility.



The Advanced Series VNAs include an RF measurement module and S2VNA or S4VNA software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 single-board computer connecting to the measurement hardware via USB interface. S2VNA and S4VNA software can be installed on multiple computers that share the use of the analyzer measurement module. The Cobalt Series network analyzers can be used in the field, in the laboratory, and in production testing for many applications. The VNA can be integrated into production test system via Manufacturing Test plug-in.

2-Port 9 GHz VNAs


C1209 2-Port 9 GHz Vector Network Analyzer

100 kHz – 9 GHz


C2209 2-Port 9 GHz Vector Network Analyzer, Direct Receiver Access

100 kHz – 9 GHz


C4209 2-Port 9 GHz Vector Network Analyzer, Frequency Extension Compatible

100 kHz – 9 GHz

2-Port 22 GHz VNAs
New

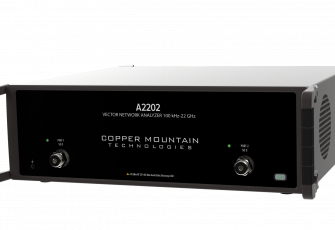

A2202 2-Port 22 GHz Vector Network Analyzer

New

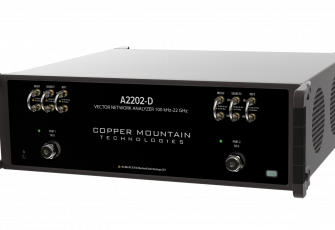

A2202-D 2-Port 22 GHz Direct Receiver Access Compatible Vector Network Analyzer

New

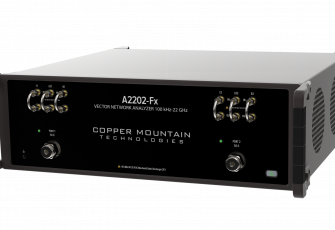

A2202-Fx 2-Port 22 GHz Frequency Extension Compatible Vector Network Analyzer

New

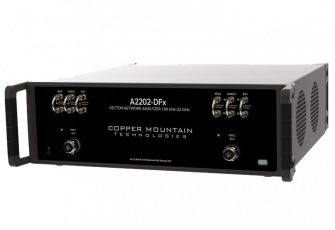

A2202-DFx 2-Port 22 GHz Direct Receiver Access and Frequency Extender Compatible Vector Network Analyzer


4-Port 9 GHz VNAs

C4409 4-Port 9 GHz Vector Network Analyzer, Frequency Extension Compatible

100 kHz – 9 GHz
