ACM2202 Automatic Calibration Module

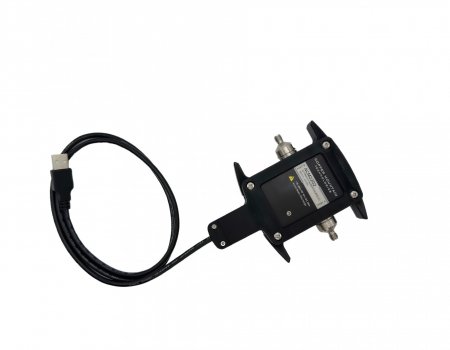

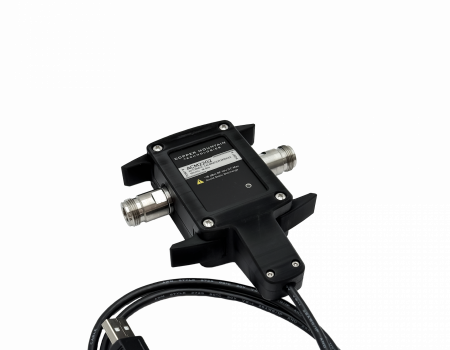

ACM2202 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 22 GHz. It is a fully automatic USB-controlled and powered electronic calibration module. Minimizing the number of steps required by technicians reduces the risk of human error and expedites the calibration process. Automating the calibration routine also reduces wear and tear on the analyzer and RF cables. To perform full 2-port calibration, each end of the ACM need only be connected to the analyzer once, as opposed to 18 connections with a traditional calibration. The ACM also contains a factory characterized 20dB in-line attenuator which acts as a simulated device under test (DUT). The confidence check feature loads the factory stored DUT into memory so proper calibration can be verified. The ACM2202 comes with a protective shroud to prevent the device from being damaged.
- ACM2202 Automatic Calibration Module
- Frequency Range: 100 kHz to 22 GHz
- Impedance: 50 Ohm
If you want to consult with our engineers about your specific application, please Ask an Engineer.
Virtually interact with CMT’s software to complete a simulated calibration of a 2-port VNA.
| Frequency Range | 100 kHz to 22 GHz |
| Number of ports | 2 |
| Connectors type | type N or 3.5 mm |
| Impedance | 50 Ohm |
| Support Standard | USBTMC-USB488 |
| (*) Notes | All type N models are only operational up to 18 GHz instead of 22 GHz |
| Model | Connector | Type |
|---|---|---|
| Port A | Port B | |

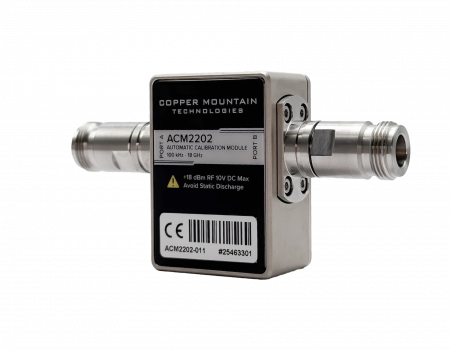

| ACM2202 – 011 | type N, female | type N, female |
| ACM2202 – 012 | type N, male | type N, male |

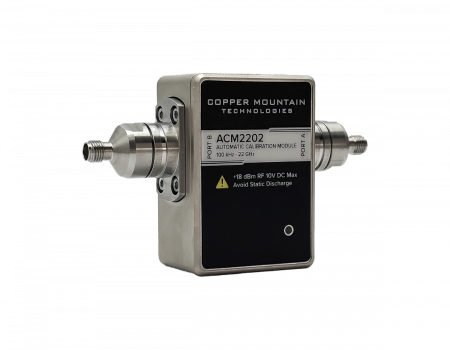

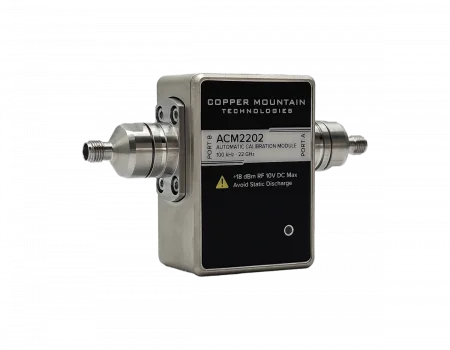

| ACM2202 – 111 | 3.5 mm, female | 3.5 mm, female |
| ACM2202 – 112 | 3.5 mm, male | 3.5 mm, female |
