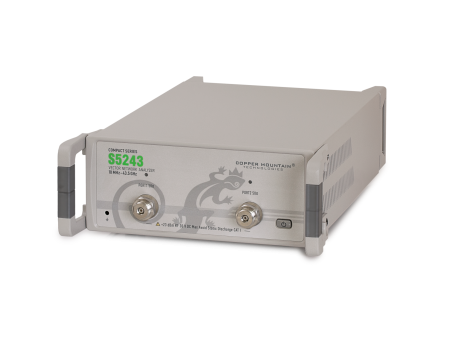

S5243 2-Port 43.5 GHz Analyzer

The S5243 is a 2-port 43.5 GHz Vector Network Analyzer is CMT’s highest frequency Compact VNA. It features excellent dynamic range and fast measurement speed in a compact package with the maximum standard software feature set.



S5243 VNA includes an RF measurement module and S2 Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.



VNAs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.













Datasheets

(S) Compact VNA Data Sheet  |  Extended Specification Sheet

Applications of the S5243 include 5G test, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.



View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.



If you want to consult with our engineers about your specific application, please Ask an Engineer.

The S5243 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:

  • Linear/logarithmic sweeps with multiple trace formats
  • Power sweeps
  • Time domain and gating conversion
  • Frequency offset mode
  • Fixture simulation (embedding/de-embedding)
  • 16 independent channels with up to 16 traces each
  • Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
  • Test Automation programming in LabView, Python, MATLAB, .NET, etc.



CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.



Datasheets

(S) Compact VNA Data Sheet | Extended Specification Sheet

Manuals

S2 & S4 Programming Manual (COM) | S2 & S4 Programming Manual (SCPI) | S2 Operating Manual

Software

S2 VNA Windows Software | S2 Windows Software Release Notes | S2 VNA Linux Software

Testing Automation

Programming Examples | Programming Guides | S2 LabVIEW Drivers

Plug-ins

Automatic Fixture Removal (AFR) | Manufacturing Test

$ 49,995.00 USD
Find a Representative Request a Quote Try the S5243 Software/Documentation
