R140 1-Port 14 GHz Analyzer

R140 Vector Network Analyzer (cable and antenna analyzer) delivers lab grade performance in a handheld device. This patented (US Patent 9,291,657) analyzer can be connected directly to the antenna or other DUT without the need for a test cable, eliminating measurement uncertainties inherent to cables. Resulting in highly dependable performance and calibration stability. The 1-port VNA comes with all the features engineers have come to expect included standard in our software.



R140 VNA includes an RF measurement module and R software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. R software can be installed on multiple computers that share the use of the analyzer measurement module. The R140 network analyzer can be used in the field, in the laboratory, and in production testing. The VNA can be integrated into production test system via Manufacturing Test plug-in.



VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

1-Port 14 GHz Reflectometer VNA Network Analyzer Specifications















Datasheets

1-Port VNA Data Sheet  |  Extended Specification Sheet

Due to its measurement accuracy, ultra-compact size and elimination of a test cable, the R140 cable and antenna analyzer (reflectometer) can be used for antennas and antenna feeders in the field, as well as laboratory and production testing in a wide variety of industries including design and production of various IoT hardware components, materials testing, medical devices, aerospace applications, etc.



View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.



If you want to consult with our engineers about your specific application, please Ask an Engineer.

The R140 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:

    • Linear/logarithmic sweeps with multiple trace formats
    • Power sweeps
    • Time domain and gating conversion
    • Frequency offset mode
    • Fixture simulation (embedding/de-embedding)
    • 16 independent channels with up to 16 traces each
    • Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
    • Test Automation programming in LabView, Python, MATLAB, .NET, etc.



CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.



Datasheets

1-Port VNA Data Sheet  |  Extended Specification Sheet

Manuals

R Programming Manual (COM)  |  R Programming Manual (SCPI)  |  R Operating Manual

Software

R VNA Windows Software  |  R Windows Software Release Notes  |  R VNA Linux Software

Testing Automation

Programming Examples  |  Programming Guides  |  R LABView Drivers

Plug-ins

Manufacturing Test

Using a Pair of Copper Mountain Technologies Vector Reflectometers

Using Microwaves for Materials Measurement

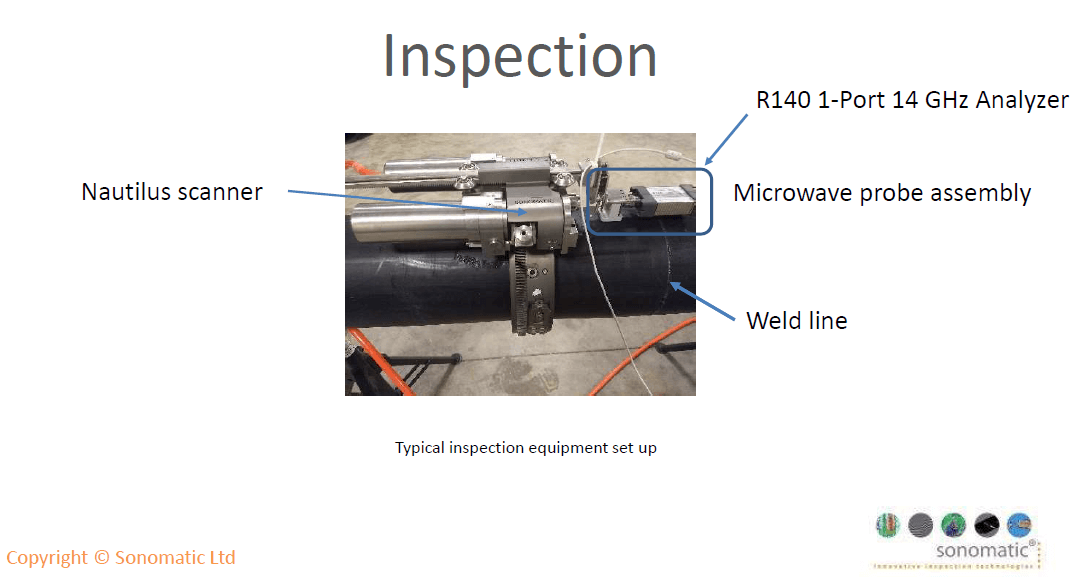

Validating Weld Integrity in HDPE
