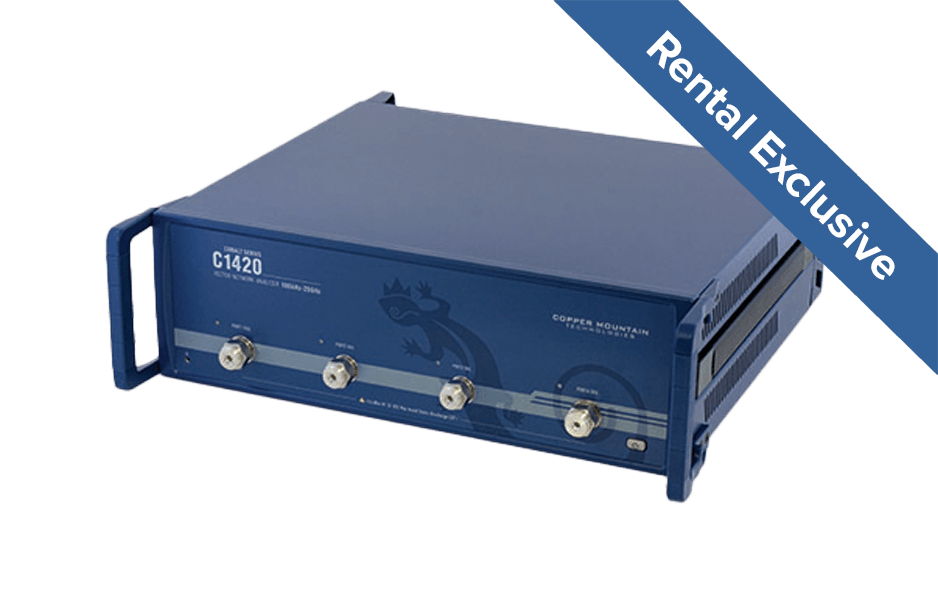

Rental Exclusive: C1420 4-Port 20 GHz Vector Network Analyzer
This product is available for rental only. Copper Mountain Technologies announced an End-of-Sale (EOS) for the C1420 4-Port 20 GHz VNA. This product is no longer available for purchase, and is now exclusively available to rent, as of May 31, 2025. We will provide service and repair for owners of this instrument for a minimum of 3 years from the EOS date or based on parts availability. The replacement for this model is the C1409 2-Port 9 GHz VNA.
C1420 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software.
This “full rack” vector network analyzer with dimensions of 23.6″ x 17.3″ x 5.5″ (600 x 440 x 140 mm) and a weight of just 48.5 lbs. (22 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test Plug-in.
| Frequency range | 100 kHz to 20 GHz |
| Measured parameters | S11, S21, S31, S41, S12, S22, S32, S42, S13, S23, S33, S43, S14, S24, S34, S44 |
| Dynamic range 1 MHz to 20 GHz |
133 dB (10 Hz IF BW) |
| Output power adjustment range | -60 dBm to +10 dBm |
| Measurement time per point | <12 µs |
| Full CW Frequency Accuracy | ± 2·10-6 |
| Frequency setting resolution | 1 Hz |
| Measurement points per sweep | up to 500,001 |
| Effective directivity 100 kHz to 10 GHz 10 GHz to 20 GHz |
46 dB 42 dB |
| Trace noise magnitude 1 MHz to 20 GHz | 1 mdB rms (3 kHz IF BW) |
Datasheets
Applications of the C1420 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
The C1420 VNAs come with all the software features engineers have come to expect, at no additional cost. Standard software features include:
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with up to 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, .NET, etc.
CMT’s Manufacturing Test plugin is available to integrate the VNA into your production test system.
Datasheets
20 GHz Cobalt VNA Data Sheet | Extended Specification Sheet
STEP File
C1420 STEP File (with or without handles)
Manuals
S2 & S4 Programming Manual (COM) | S2 & S4 Programming Manual (SCPI) | S4 Operating Manual
Software
S4 VNA Windows Software | S4 Windows Software Release Notes | S4 VNA Linux Software
Testing Automation
Programming Examples | Programming Guides | S4 LABView Drivers
Plug-ins
