TR Series Vector Network Analyzers
TR Series VNAs are Lightweight, affordable, and portable 2-port 1-path VNAs up to 3.5 GHz, ideal for field measurements and lab or production environments.
These value-priced VNAs are designed for common S11 and S21 measurements, making them ideal for testing antennas, filters, amplifiers, transmission lines and cables.
Compatible with:
Key Features of all TR Series VNAs:
- Excellent pricing
- Includes ALL the standard features users expect from the CMT software
- Software runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board single-board computer
- Compatible with ARM processors— can be operated via Raspberry Pi
- Suitable for lab, production, and field-testing environments
Shop 2-Port 1-Path VNAs
New

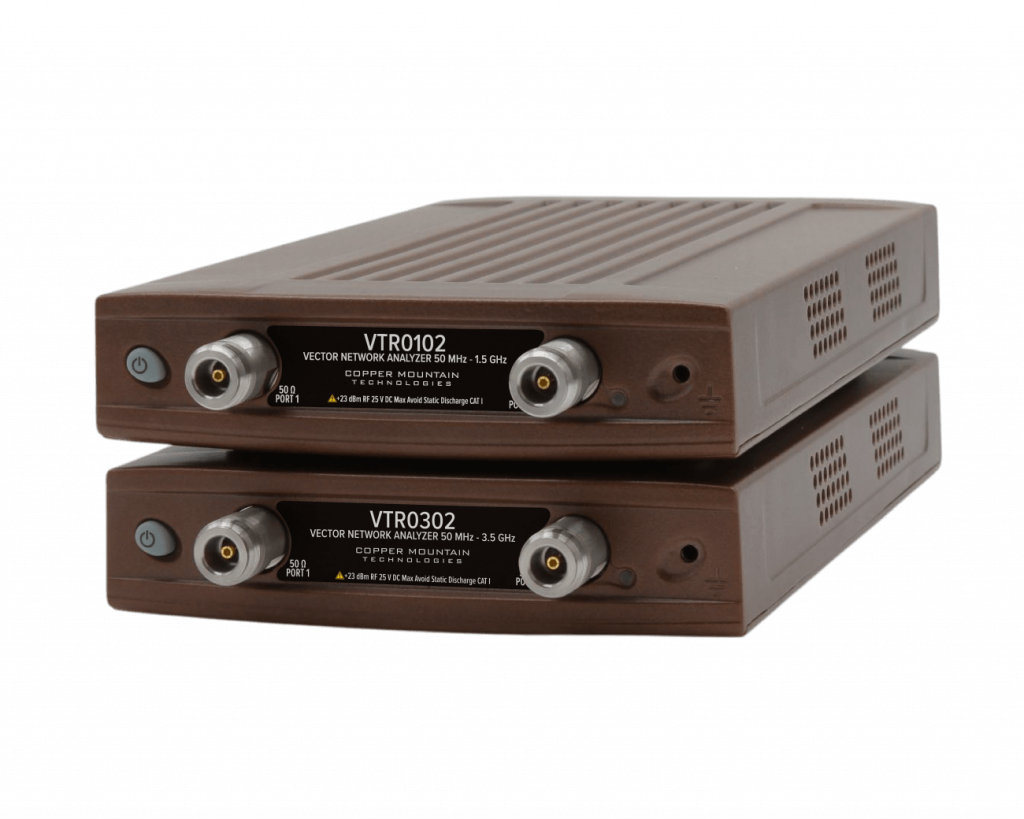

VTR0102 2-Port 1.5 GHz Vector Network Analyzer
50 MHz – 1.5 GHz
VTR0102 2-Port 1.5 GHz Vector Network Analyzer
50 MHz – 1.5 GHz
- 120 dB dynamic range
- 35 µs typ. measurement speed
- Compatible with ARM processors— can be operated via Raspberry Pi
New
VTR0302 2-Port 3.5 GHz Vector Network Analyzer
50 MHz – 3.5 GHz
VTR0302 2-Port 3.5 GHz Vector Network Analyzer
50 MHz – 3.5 GHz
- 120 dB dynamic range
- 35 µs typ. measurement speed
- Compatible with ARM processors— can be operated via Raspberry Pi
Red Dog Radios Case Study
CMT VNA software is a simplified, intuitive interface. Cross-platform support for Windows, Debian Linux, and ARM-based systems are some of the features users can expect with Copper Mountain VNAs that run on our latest software: CMT VNA.
Currently compatible with our reflectometers, including R60 and R140B 1-port VNAs, as well as VTR models.
