The channel window displays the measurement results in the form of traces and numerical values. The screen can display up to 16 channel windows simultaneously. Each window corresponds to one channel. The Analyzer hardware processes channels sequentially.
In turn, each channel window can display up to 16 traces of measured parameters. If there is more than one trace in a channel window, the way they are displayed can be changed in the diagram (See Trace Layout in the Channel Window).

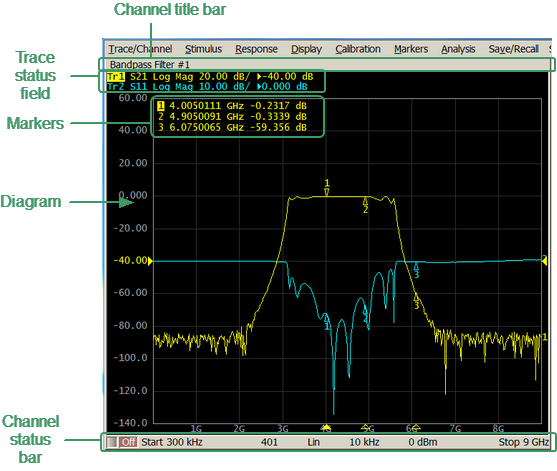

The general view of the channel window is represented in the figure below.
Channel window
Each channel window contains a Channel title (hidden by default) to be defined by the user, Trace status field to display the name and parameters of the traces, Diagram for displaying traces, as well as information about the channel status in the form of the Channel Status Bar. To display the measurement values at the indicated trace points, use the Markers feature.
A channel is considered to be a separate logical analyzer with the following settings:
•Stimulus signal settings:
•IF Bandwidth and Average
