The software on the PC screen is displayed as the Analyzer Screen. The Analyzer screen contains:
•Channel windows to display measurement results in the form of traces and numerical values.
•Menu bar and Softkey bar to control the Analyzer.
•Instrument status bar to display information about the state of the Analyzer.
A detailed description of the software window elements is given further in this section.

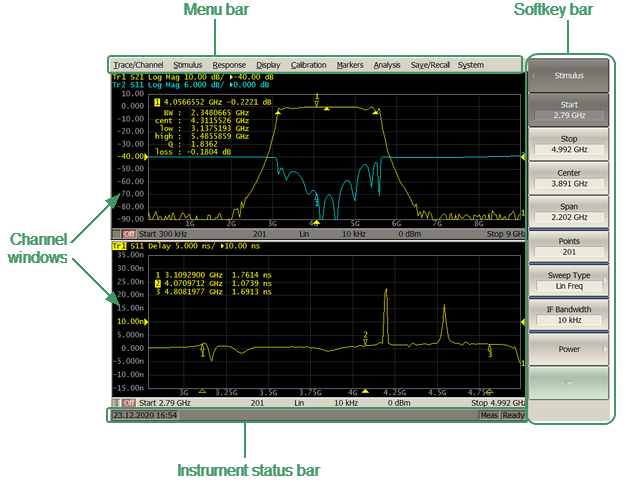

The Analyzer Screen, with the main elements highlighted, is shown in the figure below.
Analyzer screen layout
