 Network Analyzers using S2VNA software

If the number of the displayed traces is more than one, the traces can be rearranged. All the traces can be allocated to one diagram or each trace can be displayed on an individual diagram (See figures below).

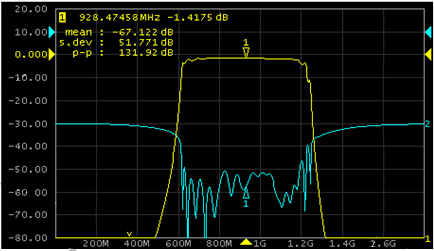

One traces in one window

All traces in one diagram (example)

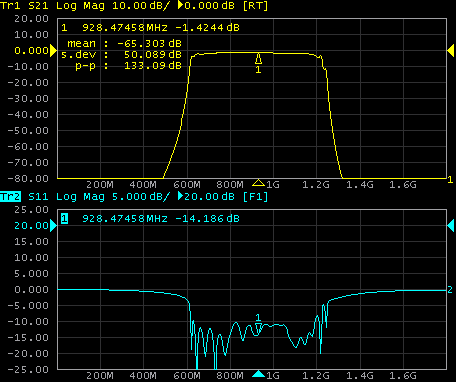

Two traces in one window

Each trace on an individual diagram (example)
