 Network Analyzers using S2VNA software

The channel title feature allows for a comment to be entered for each channel window. The channel title bar can be hidden to gain more screen space for the trace diagram.

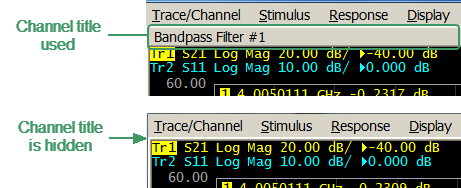

Channel title bar

Channel title bar

Display softkey

Title label

To show/hide the channel title bar, use the following softkeys:

Display > Title Label



Edit title label

The channel title edit mode can be accessed by using the following softkeys:

Display > Edit Title Label > Edit Title Label

Alternatively, click on the title area in the channel title bar.









Rev.:  24.2
