 Network Analyzers using S2VNA software

Front panel of different models of ACM2506 are shown in figure below.

ACM2509

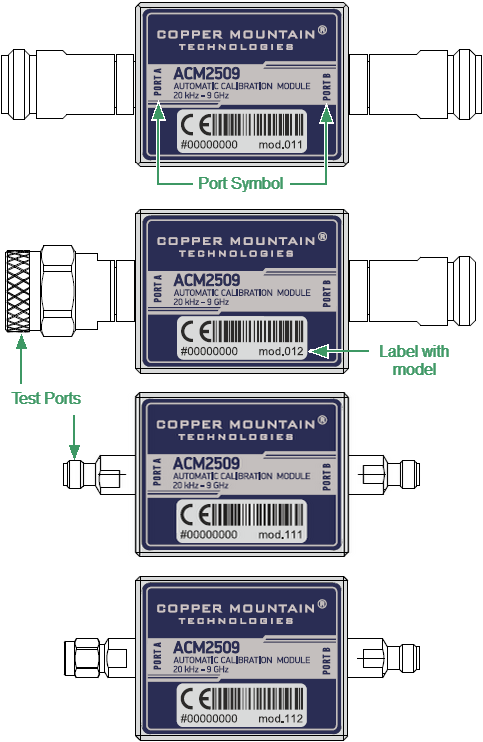

Front panel ACM2509

Parts of Module

Test Port

The test ports are designed for connection to VNA being calibrated. The VNA connectors, the cross sections of which were calibrated, are referred to as its test ports.

The Modules connectors are shown in figures below.

Type N male

Type N female

Type N, male

Type N, female

3.5 female

3.5 male

3.5 mm, female

3.5 mm, male

Mini USB Connector (on side panel)

Mini USB

The mini USB connector is located on the side panel of the Module and is intended for the Module connection to the controlling PC. The Module is powered using the USB cable.

Hardware Configurations

Model

Connector type

Port A

Port B

ACM2509-011

type N, female

type N, female

ACM2509-012

type N, male

type N, female

ACM2509-111

3.5 mm, female

3.5 mm, female

ACM2509-112

3.5 mm, male

3.5 mm, female
