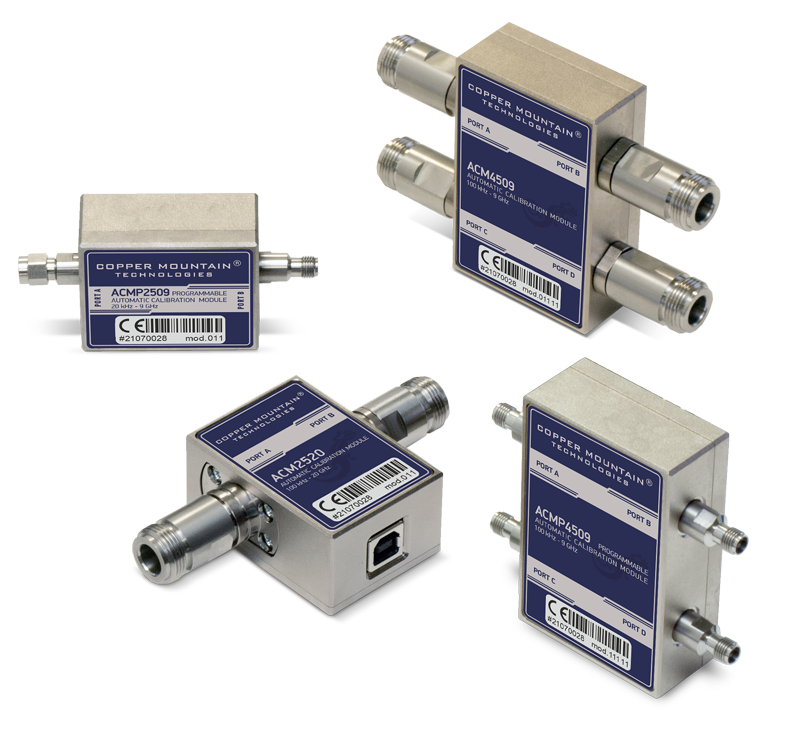

all_acm

This help system provides information on design, specifications, functional overview, and detailed operation procedures of the Copper Mountain Technologies Automatic Calibration Modules (hereinafter referred to as Modules). Use the navigation tools on the left of the window to access the sections.

This manual covers the following models of Modules:

50 Ohm two-port Module

50 Ohm four-port Modules

75 Ohm two-port Modules

ACM2506

ACM2509

ACM2520

ACM2543

ACM6000T

ACM8000T

ACM4509

ACM4520

ACM8400T

ACM2708

ACM4000T





Rev.:  24.2
