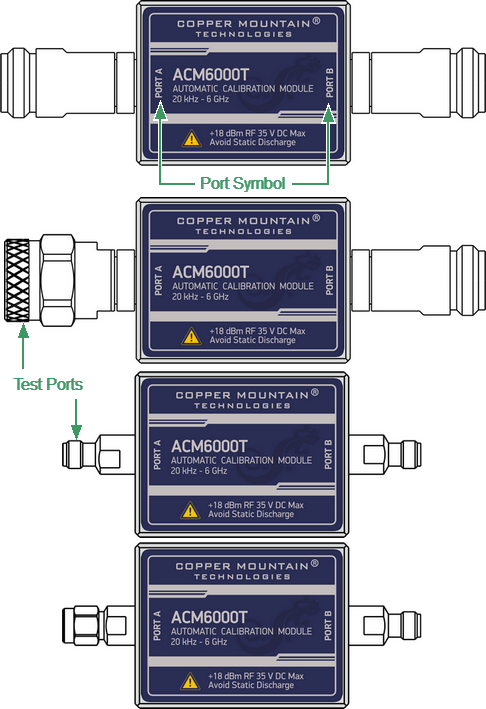

The front panels of the different models of ACM6000T are shown in the figure below.
The test ports are designed for connection to VNA being calibrated. The VNA connectors, the cross sections of which were calibrated, are referred to as its test ports.

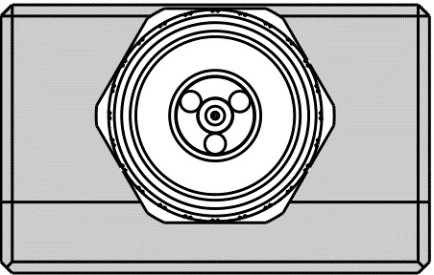

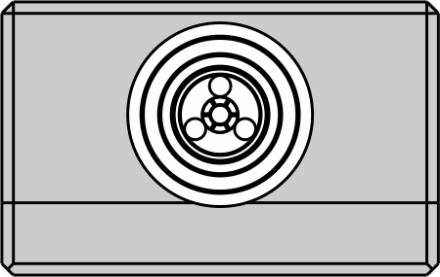

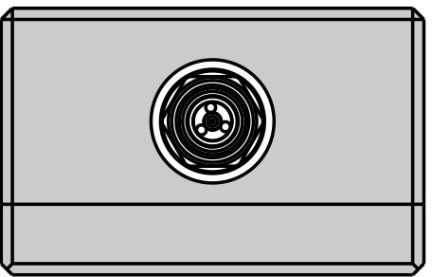

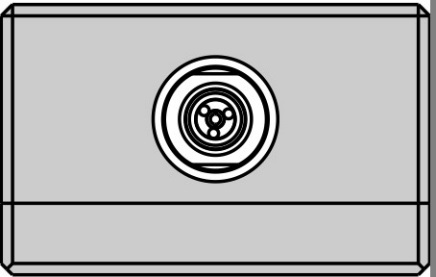

The Modules connectors are shown in figures below.
The connector is located on the bottom of the Module and is intended for the Module connection to the controlling PC. The Module is powered using the USB cable. |
Model |
Connector type |
|
---|---|---|
Port A |
Port B |
|
ACM6000T-011 |
type N, female |
type N, female |
ACM6000T-012 |
type N, male |
type N, female |
ACM6000T-111 |
3.5 mm, female |
3.5 mm, female |
ACM6000T-112 |
3.5 mm, male |
3.5 mm, female |
