 Network Analyzers using S2VNA software




note

The availability of the Scalar Mixer Calibration depends on the Analyzer model (See corresponding datasheet).


This calibration method is applied to measurements of mixers in frequency offset mode. Since the transmission coefficient phase cannot be measured in frequency offset mode, the transmission coefficient module is measured only. Reflection coefficients are measured in vector form, considering the phase. Scalar mixer calibration can be performed to correct the scalar transmission coefficient in one or both directions and the vector transmission coefficients on both ports.

The scalar mixer calibration procedure requires measuring the Short, Open, Load and THRU standards on both ports and measuring the power of one or two ports depending on the direction of measurement of the transmission coefficient of the mixer (See figure below). Measurements of mechanical calibration standards can be replaced by measurements using an automatic calibration module (ACM) in one connection. The power meter connection and setup are described in Power Meter Setting.

Scalar mixer calibration

Scalar mixer calibration setup

The scalar mixer calibration allows the following measurements:

Reflection S11 and S22 parameters in vector form.

Transmission S21 and S12 parameters in scalar form.

The power meter can be connected either one port or both ports. If the power meter was connected to port 1, then S21 transmission parameter will be calibrated. If the power meter was connected to port 2, then S12 transmission parameter will be calibrated.

Before starting the calibration, perform the following settings: select active channel and set its parameters (frequency span, IF bandwidth, etc.), and define the calibration kit. Then enable the frequency offset mode and perform the port settings.


note

The scalar mixer calibration can be performed without frequency offset. Frequency offset mode can be enabled later, during mixer measurements. In this case, the basic frequency range should cover the frequency range of each port in offset mode. This procedure is convenient, but less accurate as it involves interpolation.


Scalar mixer calibration procedure

Scalar Mixer Calibration softkey

To access the scalar mixer calibration menu, use the following softkeys:

Calibration > Mixer/Converter Calibration > Scalar Mixer Calibration



Direction Forward

Then select the required calibration direction:

Forward

Reverse

Both

Direction means the transmission direction to be calibrated. Direction determines the power meter connection port or both ports.



If mechanical calibration standards are used in the calibration procedure:

Port 1 Reflection 05CK10A-150

Open Softkey

Short softkey

Load Broadband

Click the Reflection Port n softkey.

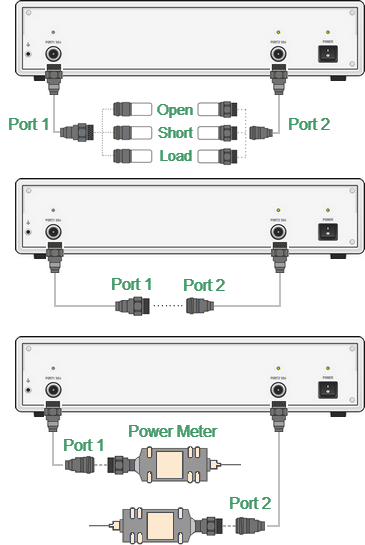

Connect SHORT, OPEN and LOAD standards to Port 1 as shown in the above figure. Perform measurements for each standard using the respective standard softkeys.

The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.



Port 1-2 Thru 05CK10A-150

Subclass 1 Thru

Subclass 2 Unknown Thru

Connect a THRU standard between the test ports.

Click the Port 1-2 Thru softkey if a flush thru or non-zero thru is used and is strictly defined in the calibration kit definition.

Click the Unknown Thru softkey if a non-zero thru is used and there is no definition for it.

The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.





If the calibration procedure uses an ACM instead of mechanical standards, connect it to the analyzer ports. Connect the USB port of the ACM to the USB port of the control computer.

ACM Settings

Perform ACM settings (See Settings Before Calibrating).

Measure Using ACM

To start the calibration, click the Measure using ACM softkey.

Wait until calibration is complete. The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.



Power R&S NRP-Z

Power Sensor Zero Correction

Click the Power softkey.

If needed, zero power meter using the Power Sensor Zero Correction softkey.


note

The power meter sensor can be connected to the port, as during zero setting the output signal of the port is turned off.


Port 1 softkey

Port 2 softkey

Connect the power meter to Port n and click the corresponding softkey.

The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.



Apply

To complete the calibration procedure, click Apply softkey.

This will activate the process of calibration coefficient table calculation and saving it into the memory. The error correction function will also be automatically enabled.



Cancel softkey

To clear the measurement results of the standards, click Cancel softkey.

This softkey does not cancel the current calibration. To disable the current calibration, turn off the error correction function.




note

The calibration status can be checked in the channel status bar (See General error correction status table) or in trace status field (See Trace error correction status table) SMC label.
