The Standards Definition sidebar provides the calibration kit standard definition. The Analyzer supports two methods for defining a standard:
•Data-Based (The calibration standards defined by S-parameters are called data-based standards).
Each standard is characterized by the lower and upper values of the operating frequency for the coaxial, or by the cutoff and double cutoff frequencies for the waveguide media.The measurements of the standards outside the specified frequency range are ignored in the process of calibration.
For detailed information about defining and editing standards, see Circuit Model Standards Definition for circuit model standards or Data-Based Standards Definition for data-based standards.

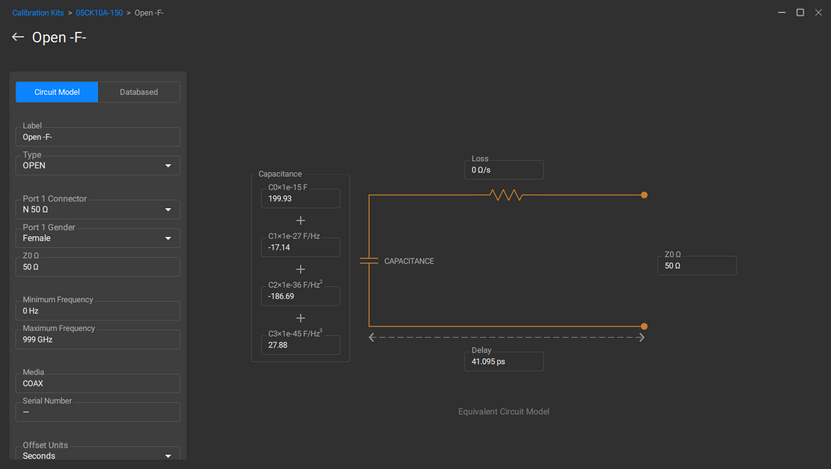

An example of the Standard Definition pop-up window defined by the circuit model for one calibration standard is shown below.
