The channel window displays the measurement results in the form of traces and numerical values. Each window corresponds to one channel. The Analyzer hardware processes channels sequentially.
In turn, each channel window can display up to 64 traces of measured parameters. If there is more than one trace in a channel window, the way they are displayed can be changed in the diagram.

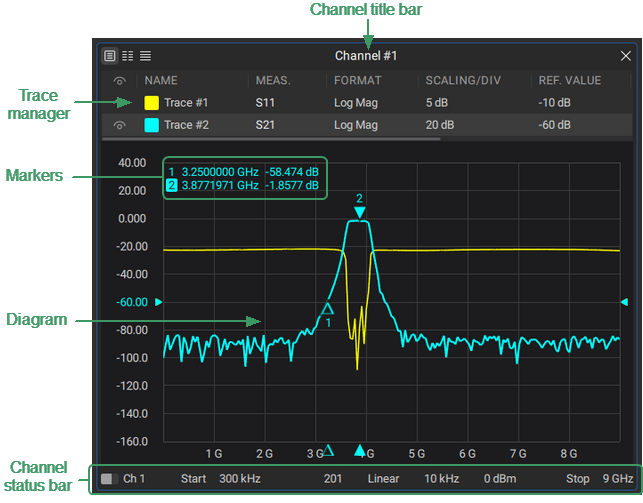

The general view of the channel window is represented in the figure below.
Channel Window
Each channel window contains a Channel title to be defined by the user, a Trace manager for displaying and changing to the name and parameters of the traces, a Diagram for displaying traces, as well as information about the channel status in the form of the Channel Status Bar. Use the Markers feature to display the measurement values at the indicated trace points.
Each window has the following parameters:
•Stimulus signal settings:
•IF Bandwidth and average
