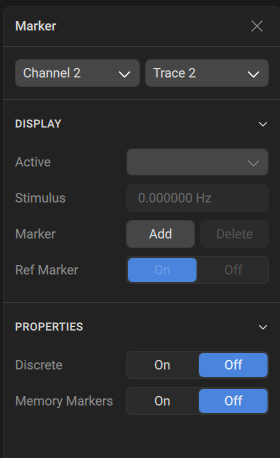

The markers indicate the stimulus values and the measured values at selected points of the trace (See figure below).
The markers are numbered from 1 to 15. The reference marker is indicated with an R symbol. The active marker is indicated in the following manners:
•Its number is highlighted with inverse color.
•The indicator on the trace is located above the trace.
•The stimulus indicator is fully colored.
note |
The use of markers is described in the Markers. |
