 Network Analyzers using S2VNA software

The selected control commands  are applied to the active channel or the active trace, respectively.

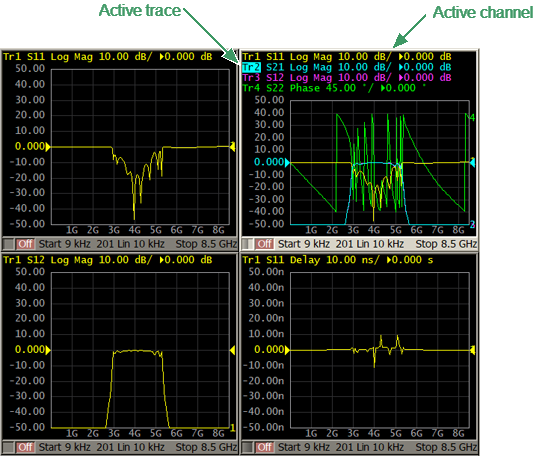

The boundary line of the active channel window is highlighted in a light color. The active trace belongs to the active channel and its title is highlighted in an inverse color.

Before setting the parameters of a channel or trace, that channel or trace needs to be activated.

Activ Cannel-Trace

Active Trace/Channel

Active trace_channel

Active trace next previous

Active Channel 1 next previous

To activate a trace/channel, use the following softkeys:

Display > Active Trace/Channel

Then activate the trace by entering the number in the Active Trace softkey or using Previous Trace or Next Trace softkeys.

The active channel can be selected in a similar way.








note

Active trace/channel can be selected using the mouse (See Active Trace Selection and Active Channel Selection).
