 Network Analyzers using S2VNA software

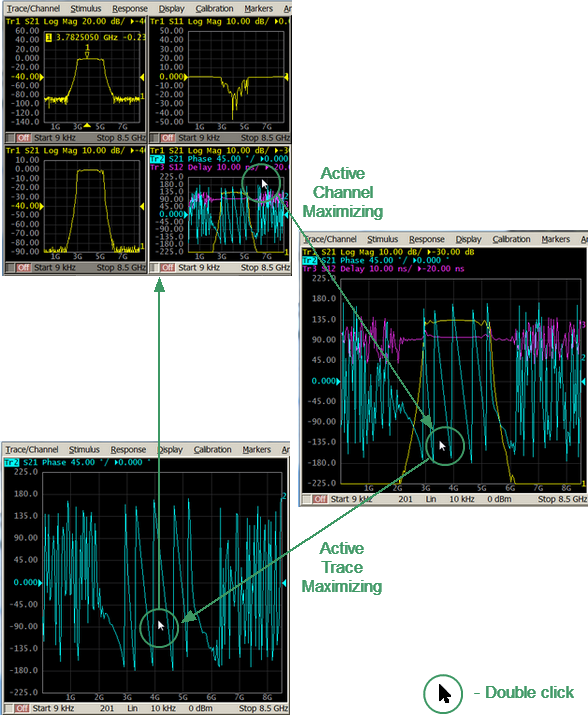

When there are several channel windows displayed, the active channel window can be temporarily expanded to full screen size. The other channel windows will not be visible, but this will not interrupt measurements in those channels.

Window Maximizing

Active Channel/Trace Window Maximizing

Similarly, when there are several traces displayed in a channel window, the active trace can be temporarily expanded. The other traces will not be visible, but this will not interrupt measurement of those traces.

Active trace_channel

Maximize channel

To enable/disable active channel maximizing function, use the following softkeys:

Display > Active Trace/Channel > Maximize Channel

Maximize trace

To enable/disable active trace maximizing function, use the following softkeys:

Display > Active Trace/Channel > Maximize Trace






note

Channel and trace maximization can also be controlled achieved by a double click on the channel/trace. To return to the initial state, double click on channel/trace.




Rev.:  24.2
