 Network Analyzers using S2VNA software

This section describes mouse operations, which allows to set the channel parameters quickly and easily. In a channel window, when hovering over the field where a channel parameter can be modified, the mouse pointer will change its icon to indicate edit mode. In text and numerical fields, edit mode will be indicated by underlined symbols.


note

The mouse operations described in this section help to adjust the most frequently used settings. The complete set of channel functions can be accessed via the softkey bar.


The figures below show areas and labels for quick parameter setting.

mouse_control

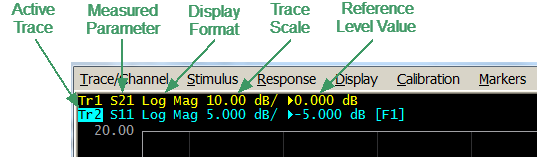

Quick Parameter Setting in the Trace Status Field

mouse_control2

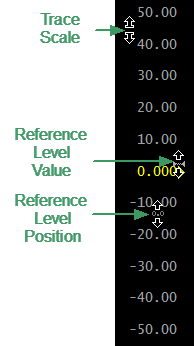

Quick Parameter Setting on the Vertical Graticule Label

mouse_control3

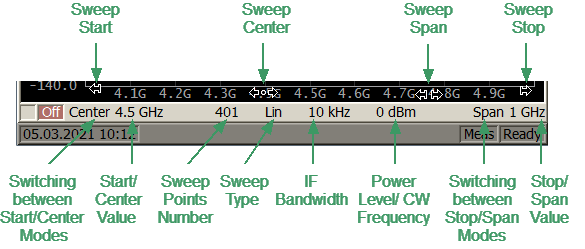

Quick Parameter Setting on the Channel Status Bar

mouse_control4

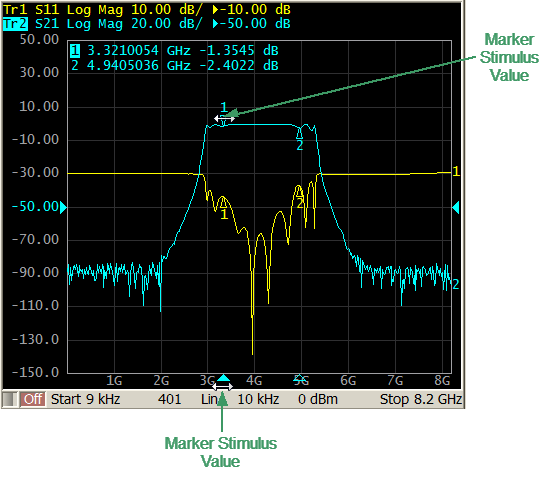

Quick Parameter Setting on Markers
