 Network Analyzers using S2VNA software

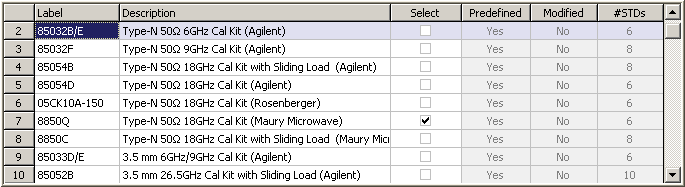

The table of calibration kits (See figure below) allows for selecting and editing of the calibration kits.

Table of calibration kits

Table of calibration kits

Calibration

Cal Kit 8850Q

To open the list of the calibration kits (See figure below), use the following softkeys:

Calibration > Cal Kit







To edit a calibration kit, highlight its line in the table.

Calibration kit editing is comprised of two main procedures:

Defining of the calibration standard (See Calibration Standard Definition).

Assignment of classes to calibration standards (See Classes of Calibration Standards).

First, define the calibration standards, and then assign classes to them. Calibration standard definition and assignment of classes is performed in different tables.

The label of a calibration kit and its description can be edited in the table of the calibration kits (See above figure). The label appears on the calibration menu softkeys. The description is just to provide information for the user.

The table also contains display-only fields: flags of predefined and modified calibration kits and the counter of the calibration standards in a kit.

Calibration Kit Selection for Editing

Move the highlighting to the required line in the calibration kit (See figure above) table using “” and “↓” arrows and click on the «Enter» softkey.


note

The checkmark in the “Select” field does not matter for the kit selection for editing, it selects the calibration kit for calibration.


Calibration Kit Label and Description Editing

Move the highlighting to the required line in the calibration kit (See figure above) table using "←" и "→" arrows and click on the «Enter» softkey. Then, enter the new text in the table.

Cal Kit 8850Q grey

On-Screen Keyboard

To activate the on-screen keyboard, click the On-Screen Keyboard softkey.







Predefined Calibration Kit Restoration

Move the highlighting to the required line in the calibration kit (See above figure).

Cal Kit 8850Q grey

Restore Cal Kit

To cancel the user changes of a predefined calibration kit, use the following softkeys:

Restore Cal Kit








note

A predefined calibration kit can be restored but cannot be erased.


User-Defined Calibration Kit Deletion

Move the highlighting to the required line in the calibration kit (See above figure).

Cal Kit User Kit 1

Erase Cal Kit

To delete a user-defined calibration kit from the table, use the following softkey:

Erase Cal Kit


note

A user-defined calibration kit cannot be restored but can be erased.


Saving Calibration Kit to File

Saving a calibration kit to file is necessary for copying it to a different line of the table or to a different Analyzer.

This command is not necessary to save changes made by the user to the definitions of the kit, as these changes are saved automatically.

Move the highlighting to the required line in the calibration kit (See above figure).

Cal Kit 8850Q grey

Save to File softkey

To save a calibration kit to file, click the following softkey:

Save to File…







Loading Calibration Kit from File

Calibration kit files that were created by the previous command can be loaded.

Move the highlighting to the required line in the calibration kit (See above figure).

Cal Kit 8850Q grey

Load from file softkey

To load a calibration kit form file, click the following softkey:

Load from File…









Rev.:  24.2
