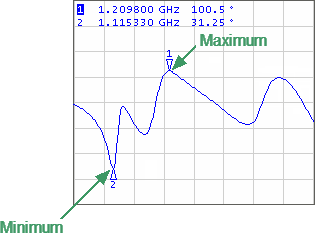

Maximum and minimum search functions are used to determine the maximum and minimum values of the measured parameter and move the marker to these positions on the trace (See figure below).

Maximum and minimum search

Maximum and minimum search

Marker search softkey

Maximum dot softkey

Minimum softkey no dot

To find the maximum or minimum values on a trace, use the following softkeys:

Markers > Marker Search > Maximum

Markers > Marker Search > Minimum








note

Activate the marker before starting maximum or minimum search (See Marker Activation).

In Smith chart and polar formats, the search is executed for the first marker value.
