 Network Analyzers using S2VNA software

The fixture simulation functions are a set of software functions for mathematically simulating measurement conditions that are different from the actual measurement conditions. The following conditions can be simulated:

Port Extension or Automatic Port Extension

Port reference impedance conversion

Circuit de-embedding

Circuit embedding

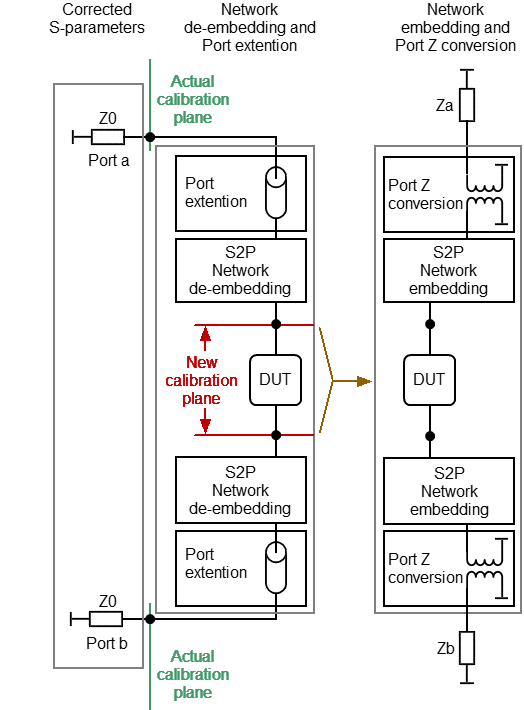

The logic diagram of the fixture simulation function is shown in the figure below.

Logic diagram of fixture simulation

Logic diagram of fixture simulation function

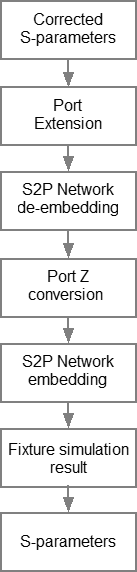

The data processing flow diagram of the fixture simulation feature is shown in the figure below.

Data processing flow diagram of fixture simulation

Data processing flow diagram of fixture simulation function

The channel to which the function is applied must be preselected as active (See Selection of Active Trace/Channel). Fixture simulation functions affect all the traces of the channel.

Analysis

Fixture Simulator

To enable fixture simulation functions, use the following softkeys:

Analysis > Fixture Simulator  [ ON | OFF ]








note

The fixture simulator softkey enables or disables fixture simulation in general. Each fixture simulator function has its own ON/OFF softkey.
