 Vector Network Analyzers Using CMT VNA Software

The Configuration List contains user-created configurations and allows to add, remove, and run the desired configuration.

Each configuration has a unique title that can be changed if it is necessary. Information about the date and time of its last execution is displayed under the title of the configuration. If the configuration has not been performed, then not calibrated is displayed in the date and time line.

Configurations are sorted by date and time in descending order. If the configuration has not been not performed, it will be located at the end of the list. If there are several such configurations, they are sorted by name.

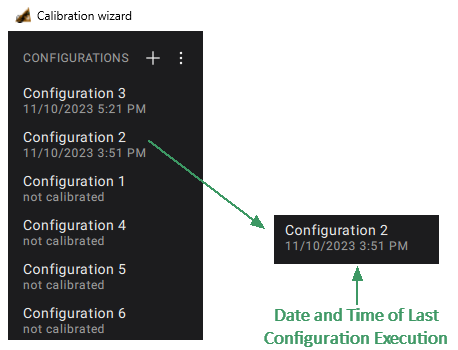

Configuration List

Configuration List

The configuration list can be shown/hidden by clicking on the icon Show Sidebar in the upper left corner of the of configuration area. When performing calibration, the configuration list is automatically hidden.

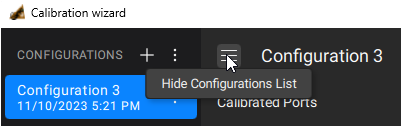

Hide Configuration List

Configuration List Show/Hide Button

Adding New Configuration

1

Click on the Add Configuration icon in the configuration list.

Note If there are no configurations in the wizard, you can create the first configuration by pressing the ADD CONFIGURATION button in the configuration area.

Add Configuration 2





note

Each configuration has a unique title name. You can rename a configuration title name if necessary (see Renaming Configuration).

Starting Configuration from Configuration List

You can run customized configuration. To learn more about configuring, see Configuration Area.

1

Highlight the required configuration in the configuration list, then click the vertical-ellipsis button Expand and click on Start in the pop-up window.

NOTE If the configuration is not customized (parameters of the calibration plane for all created port groups are not set), Start in the pop-up window will not be available.

Start Configuration





note

You can run configuration calibration from the configuration area (see Configuration Area).

Deleting Configuration

note

Deleting a configuration does not remove or turn off the correction in the channels.

1

Highlight a configuration in the wizard configuration list.

2

Click the Expand vertical-ellipsis button to the right of the configuration name.

3

Select Delete in the pop-up window.

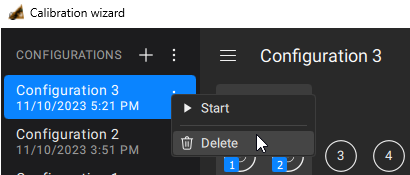

Delete Configuration





Deleting All Calibration Configurations

1

Click the Sidebar points vertical-ellipsis button in the wizard configuration list.

2

Select Delete All in the pop-up window.

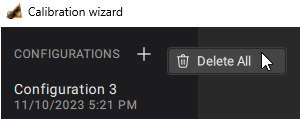

Delete All Configuration 2







Rev.:  25.00
