 Network Analyzers using S2VNA software

The trace statistics feature allows to determine and view trace parameters, such as mean, standard deviation, and peak-to-peak.

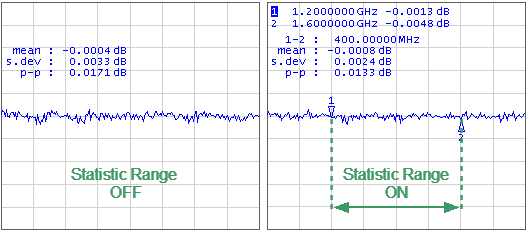

The range of trace statistics can be defined by two markers (See figure below).

Trace statistics

Trace statistics

Trace Statistics parameter

Symbol

Definition

Formula

mean

Arithmetic mean

s.dev

Standard deviation

p-p

Peak-to-Peak: difference between the maximum and minimum values

Max – Min

Statistics softkey

Statistics OFF

To enable/disable trace statistics function, use the following softkeys:

Markers > Marker Math > Statistics > Statistics



Statistics Range OFF

To enable/disable trace statistics range, use the following softkeys:

Markers > Marker Math > Statistics > Statistic Range



Statistic Start Marker 1

Statistic Stop Marker 2

To set the start/stop markers of the statistics range, use the following softkeys:

Markers > Marker Math > Statistics > Statistic Start

Markers > Marker Math > Statistics > Statistic Stop
