 Network Analyzers using S2VNA software

The ripple limit test is an automatic pass/fail check of the measured trace data. The trace is checked against the maximum ripple value (ripple limit). The ripple value is the difference between the maximum and minimum response of the trace in the trace frequency band.

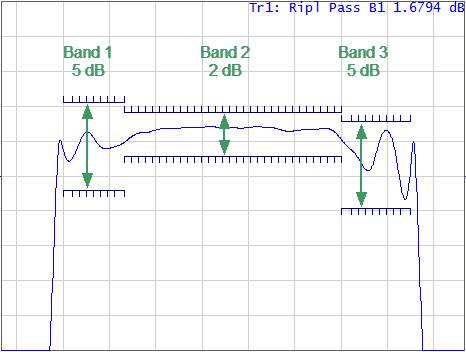

The ripple limit can include one or more segments (See figure below). Each segment provides the ripple limit for the specific frequency band. A segment is set by the frequency band and the ripple limit value.

Ripple limits

Ripple limits

The ripple limit settings are set in the ripple limit table. Each row of the table describes the frequency band of the ripple limit value. The process of ripple limit table editing is described below. The table can be saved into a *.RML file.

The display of the limit lines on the screen can be turned ON/OFF independently of the status of the ripple limit test function.

The result of the ripple limit test is indicated in the upper right corner of the diagram:

If the measurement result passed the limit test, the trace number and the result will be seen: Tr1: Ripl Pass.

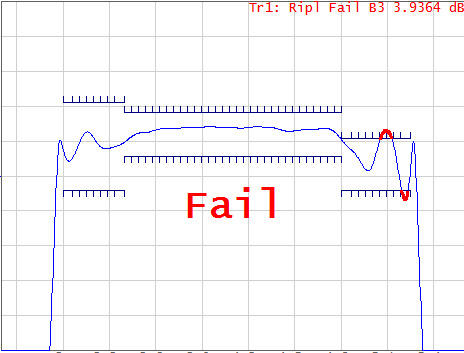

If the measurement result failed, the result will be indicated in the following ways (See figure below):

1.Tr1: Ripl1: Fail will be displayed in upper right corner of the diagram.

2.Fail sign will be displayed in red in the center of the window.

3.A beep will be heard.

The fail sign and the beep can be disabled using the Fail Sign softkey. For beep deactivation see Beeper Settings.

Test fail indication2

Test fail indication

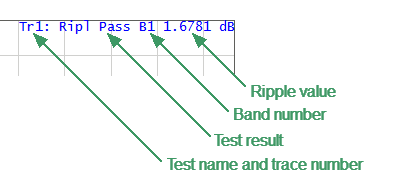

The display of the ripple value can be enabled/disabled in the ripple limit test status line in the upper right corner of the diagram (See figure below). The ripple value is displayed for the band selected by the user. The ripple value can be represented as an absolute value or as a margin to the limit.

Ripple limit test status line

Ripple limit test status line

Ripple Limit Enabling/Disabling

Ripple limit softkey

Ripple Test ON

To enable/disable ripple limit test function, use the following softkeys:

Analysis > Ripple Limit > Ripple Test [ON | OFF]







Ripple Limit Editing

In the editing mode, the limit table will appear in the lower part of the screen (See figure below). The limit table will be hidden when exiting the submenu.

Ripple limit table

Ripple limit table

Navigating within the table to enter the values of the following parameters of a ripple limit test segment:

Type

Select the segment type among the following:

ON — band used for the ripple limit test.

OFF — band not used for the limit test.

Begin Stimulus

Stimulus value in the beginning point of the segment.

End Stimulus

Stimulus value in the ending point of the segment.

Ripple Limit

Ripple limit value.

Ripple limit softkey

Edit ripple limit softkey

To access the ripple limit editing mode, use the following softkeys:

Analysis > Ripple Limit > Edit Ripple Limit

Add softkey

Delete softkey

To add a new row in the table, click Add. The new row will appear below the highlighted one.

To delete a row from the table, click Delete. The highlighted row will be deleted.



Clear Ripple Limit Table

To clear the entire table, use the Clear Ripple Limit Table softkey.

Save Ripple Limit Table

To save the table into *.RML file, use the Save Ripple Limit Table softkey.



Restore Ripple Limit Table

To open the table from a *.RML file, use the Recall Ripple Limit Table softkey.



Ripple Limit Test Display Management

Ripple limit softkey

Ripple Limit ON

To enable/disable display of the ripple limit line, use the following softkeys:

Analysis > Ripple Limit > Ripple Limit [ON | OFF]



Fail Sign ON

To enable/disable display of fail sign in the center of the diagram, use Fail Sign softkey.



Ripple Value Band 1

To enter the number of the band, whose ripple value should be displayed, use the following softkeys:

Analysis > Ripple Limit > Ripple Value Band



Ripple Value OFF

OFF Absolute Margin

To enable/disable display of the ripple value, use the following softkeys:

Analysis > Ripple Limit > Ripple Value > [ OFF | Absolute | Margin ]
