 Network Analyzers using S2VNA software

The protective housing is designed to protect the test ports and the USB connector of the automatic calibration module (ACM) from mechanical influences.

The protective housing is removable. The collapsible design allows for quick installation.

The protective housing is non-repairable.


note

The protective housing is not intended for use in extreme environments. Do not bend or stretch the protective housing during use.


The appearance of the protective cover is determined by the modification of the module (See table below).

ACM Protective Housing

Housing Model

Compatible ACM models

ACM2509

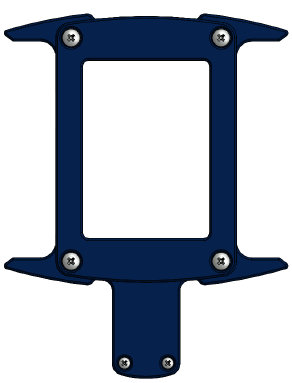

ACM2509 protective housing

ACM2506-111, ACM2506-112,

ACM2509-111, ACM2509-112,

ACM6000T-111,ACM6000T-112,

ACM8000T-111, ACM8000T-112

ACM2509

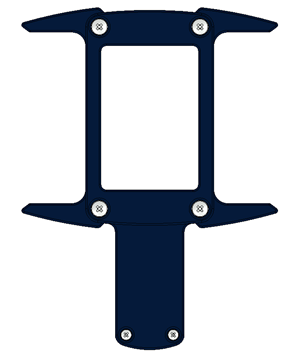

ACM2509 protective housing 2

ACM2506-011, ACM2506-012,

ACM2509-011, ACM2509-012,

ACM2708-011, ACM2708-111,

ACM6000T-011,ACM6000T-012,

ACM8000T-011, ACM8000T-012,

ACM4000T-511, ACM4000T-512

ACM2520

ACM2520 protective housing

ACM2520-011, ACM2520-012,

ACM2520-111, ACM2520-112

ACM2543

ACM2543 protective housing

ACM2543-611, ACM2543-612,

ACM2543-711, ACM2543-712

ACM4509

ACM4509 protective housing

ACM4509-01111, ACM4509-01212,

ACM4509-11111, ACM4509-11212,

ACM84000T-01111, ACM84000T-01212,

ACM84000T-11111, ACM84000T-11212

ACM4520

ACM4520 protective housing

ACM4520-01111, ACM4520-01212,

ACM4520-11111, ACM4520-11212



Rev.:  24.2
