 Network Analyzers using S2VNA software

Typical connection diagram for one-path two-port and full two-port calibration is shown in figure below.

One-path two-port calibration connection

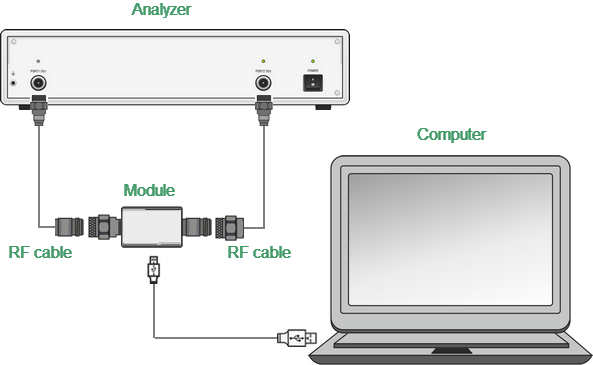

Module Connection Diagram for Performing One-path Two-port

To prevent the cable from damage and improve the stability, it is recommended to use additional protection metrology-grade adapters (these adapters are not shown in figure).


WaRNING

Use a torque wrench to tighten the male connector nut. Use a spanner to prevent the connected devices from rotation.
