 Network Analyzers using S2VNA software

In order to perform calibration, it is recommended to connect a LOAD to a free port of the Module. The LOAD is not included in the delivery kit.

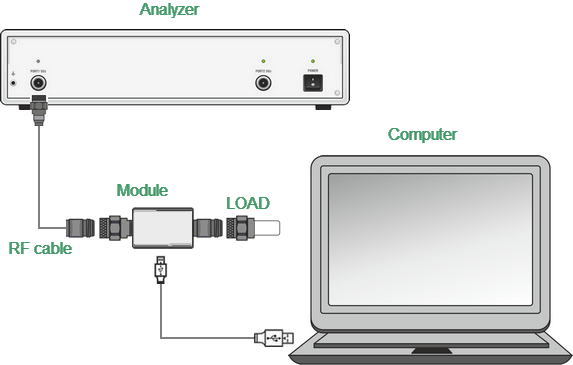

Typical connection diagram for full one-port calibration is shown in figure below.

Full one-port calibration connection

Module Connection Diagram for Performing Full One-port Calibration

To prevent the cable from damage and improve the stability, it is recommended to use additional protection metrology-grade adapters (these adapters are not shown in figure).


WaRNING

Use a torque wrench to tighten the male connector nut. Use a spanner to prevent the connected devices from rotation.
