 Network Analyzers using S2VNA software

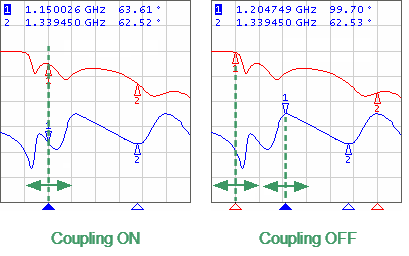

The marker coupling feature enables/disables coupling of markers with the same numbers on different traces. If the feature is turned on, the markers with the same numbers will move along the X-axis synchronously on all the traces. If the coupling feature is off, the position of the markers with same numbers along X-axis will be independent (See figure below).

Marker coupling feature

Marker coupling feature

Marker Properties

Marker Couple softkey

To enable/disable the marker coupling feature, use the following softkeys:

Markers > Properties > Marker Couple









Rev.:  24.2
