 Network Analyzers using S2VNA software

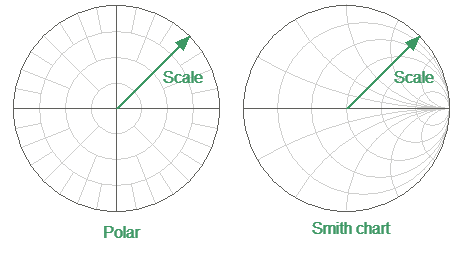

For Polar formats and Smith chart formats, the outer circle value can be set (See figure below).

Smith scale

Circular Scale

The scale of each trace can be set independently. The trace to which the function is applied must be preselected as active (See Selection of Active Trace/Channel ).

Scale

Scale 1 U FS

To set the scale of the circular graphs, use the following softkeys:

Scale > Scale
