 Network Analyzers using S2VNA software

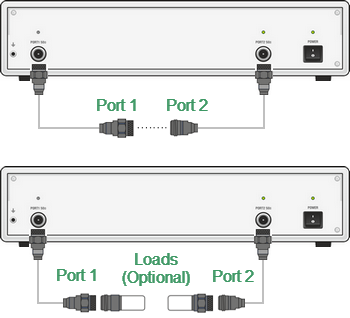

Transmission normalization is the simplest calibration method used for transmission coefficient measurements (S21 or S12). Measurement of one THRU standard is enough to perform this type of calibration (See figure below). This method is called normalization because the measured S-parameter at each frequency point is divided (normalized) by the corresponding S-parameter of the calibration standard. Transmission normalization corrects the transmission tracking error (Et) only. This constrains the accuracy of the method.


note

Transmission normalization can also be referred to as response thru calibration.


An optional isolation calibration can be performed by measurement of two LOAD standards connected to both test ports of the analyzer. In this case, the isolation error (Ex) is additionally corrected in the transmission normalization.


note

For isolation calibration, set a narrow IF bandwidth and firmly attach the cables.


Transmission normalization

Transmission normalization

Before starting calibration perform, select an active channel, set the parameters of the channel (frequency range, IF bandwidth, etc), and select the calibration kit.

Response (thru)

To open transmission normalization submenu, use the following softkeys:

Calibration > Calibrate > Response (Thru)

Select Ports 2-1 (S21)

Select the direction of the calibration using the Select Ports softkey. The label on the softkey indicates the following: receiver port — source port (measured parameter).



Thru softkey

Connect a THRU standard between the test ports. If the port connectors allow through connection connect them directly (zero electrical length thru). Perform measurement using the Thru softkey.

The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.



Isolation (optional)

To perform the optional isolation calibration, connect two LOAD standards to the test ports as shown in the above figure and enable measurement using the Isolation (Optional) softkey.

The instrument status bar will indicate Calibration in progress... when the measurement is in progress. On completion of the measurement, a check mark will appear in the left part of the softkey.



Apply

To complete the calibration procedure, click Apply softkey.

This will activate the process of calibration coefficient table calculation and saving it into the memory. The error correction function will also be automatically enabled.



Cancel softkey

To clear the measurement results of the standard, click Cancel softkey.

This softkey does not cancel the current calibration. To disable the current calibration, turn off the error correction function (See Error Correction Disabling).








note

The calibration status can be checked in channel status bar (See General error correction status table) or in trace status field (See Trace error correction status table).
