 Network Analyzers using S2VNA software

After presetting the Analyzer, the stimulus parameters will be as follows:

•Full frequency range of the instrument.

•Linear sweep type.

•201 points.

•Power level of 0 dBm.

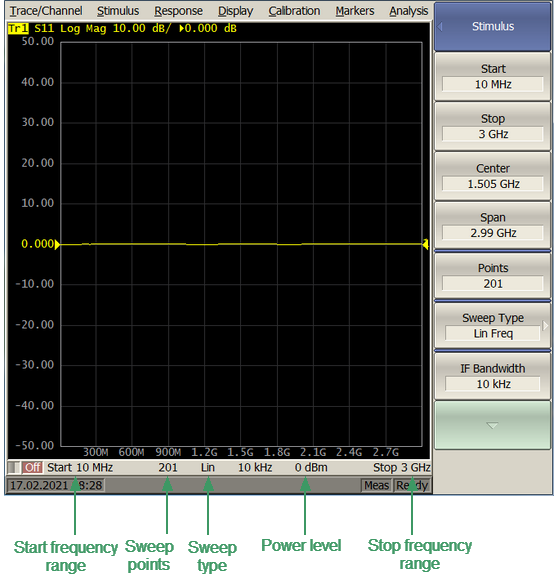

chan stat bar-set start-stop

Settable parameters in the channel status bar

For the current example, set the frequency range from 10 MHz to 3 GHz.

Stimulus

Start 10 MHz

To set the start frequency of the frequency range to 10 MHz, use the following softkeys:

Stimulus > Start

Then enter «1», «0» from the keyboard. Complete the setting by pressing the «M» key. (Capital “M”).

Stop 3 GHz

To set the stop frequency of the frequency range to 3 GHz, use the following softkeys:

Stimulus > Stop

Then enter «3» from the keyboard. Complete the setting by pressing «G» key.



To return to the main menu, click the top softkey (colored in blue).

note

The Start and Stop values of the frequency range can be set using the mouse (See Sweep Start Setting).
