 Network Analyzers using S2VNA software

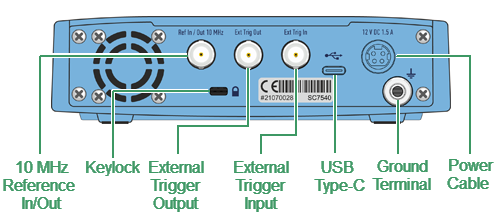

The rear view of the Analyzers is represented in the figures below.

SC rear

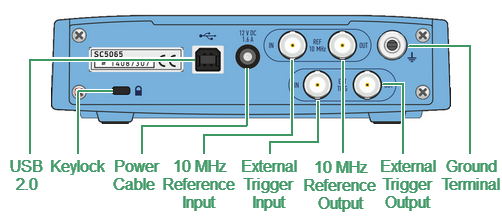

SC5060, SC5090 rear panel

Parts of rear panel

Power Cable Receptacle

power cable4

The power supply receptacle is intended for an external DC power supply voltage from 9 to 15 V; alternatively, the power supply can be powered by a battery, including a vehicle battery, through an appropriate vehicle power cable. The DC connection requires a 3.5x1.35 mm plug with positive center conductor.

External Trigger Signal Input Connector


This connector allows to connect an external trigger source. Connector type is BNC female. For input and signal parameters, see instrument specification.

External Trigger Signal Output Connector


The External Trigger Signal Output port can be used to provide trigger to an external device. The port outputs signal with various waveforms depending on the setting of the Output Trigger Function: before frequency setup pulse, before sampling pulse, after sampling pulse, ready for external trigger, end of sweep pulse, measurement sweep.

Internal Reference Frequency Input Connector


External reference frequency is 10 MHz, input level is 2 dBm ± 2 dB, input impedance at «Ref In» is 50 Ω. Connector type is BNC female.

External Reference Frequency Output Connector


Output reference signal level is 3 dBm ± 2 dB at 50 Ω impedance. Connector type is BNC female.

USB 2.0 High Speed Port


The USB port is intended for connection to an external PC.

Ground Terminal

Ground Terminal 3

To avoid electric shock, use  this terminal for grounding.

The Ground terminal allows to directly connect the body of the Analyzer to the test station ground in order to ensure electrical safety.



A Kensington lock (K-Slot) is part of an anti-theft system.
