 Network Analyzers using S2VNA software

The rear view of the Analyzers is represented in the figures below.

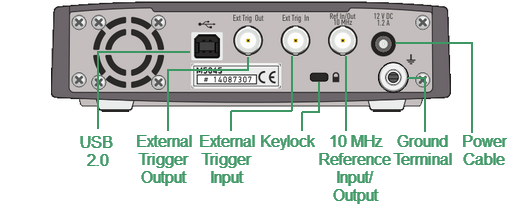

M rear

M5045, M5065, M5090 rear panel

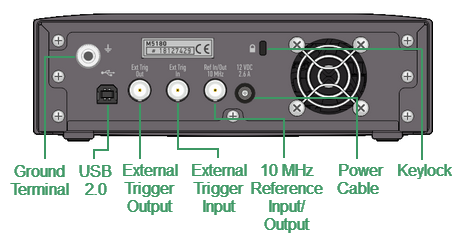

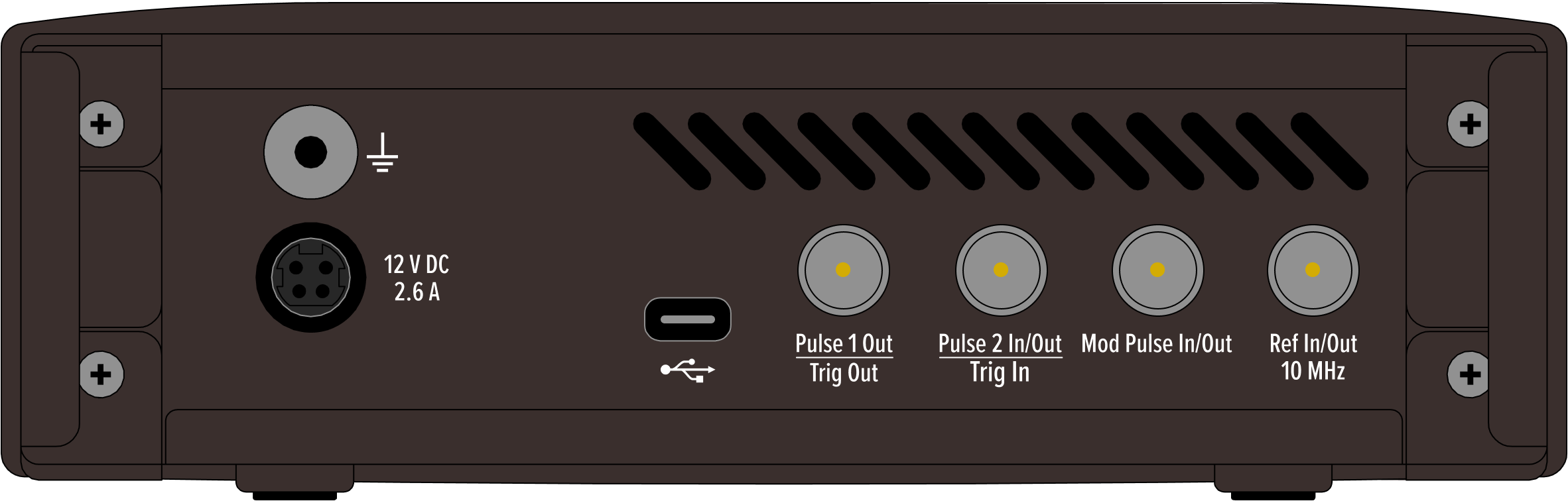

M5180  rear

M5180 rear panel

Parts of rear panel

Power Cable Receptacle

power cable3

The power supply receptacle is intended for an external DC power supply voltage from 9 to 15 V; alternatively, the power supply can be powered by a battery, including a vehicle battery, through an appropriate vehicle power cable. The DC connection requires a 3.5x1.35 mm plug with positive center conductor.

External Trigger Signal Input Connector

Ext Trigg In2

This connector allows to connect an external trigger source. Connector type is BNC female. For input and signal parameters, see instrument specification.

External Trigger Signal Output Connector

Ext Trig Out

The External Trigger Signal Output port can be used to provide trigger to an external device. The port outputs signal with various waveforms depending on the setting of the Output Trigger Function: before frequency setup pulse, before sampling pulse, after sampling pulse, ready for external trigger, end of sweep pulse, measurement sweep.

Reference Frequency Input/Output Connector

Ext Ref In-Out2

Output reference signal level is 3 dBm ± 2 dB at 50 Ω impedance. Connector type is BNC female.

USB 2.0 High Speed Port

USB2

The USB port is intended for connection to an external PC.

Ground Terminal

ground rear1

To avoid electric shock, use  this terminal for grounding.

The Ground terminal allows to connect directly the body of the Analyzer to the test station ground in order to ensure electrical safety.

Keylock

Keylock1

A Kensington lock (K-Slot) is part of an anti-theft system



Rev.:  24.1
