The sweep mark is visible during measurement if the measurement cycle time is long, due to a narrow IF filter bandwidth or a large number of measurement points (See figure below). If necessary, the sweep mark can be hidden.

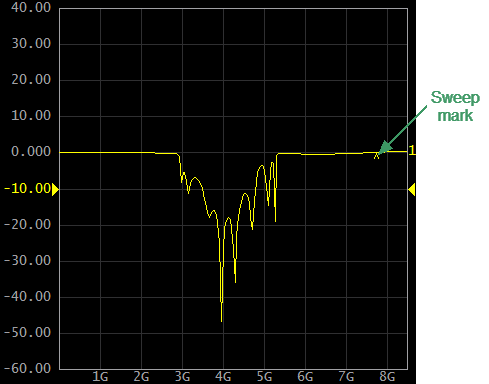

Sweep Mark

Sweep mark

Display Properties

Sweep Mark ON

To hide/show sweep mark, use the following softkeys:

Display > Properties > Sweep Mark [ON | OFF]
