 Network Analyzers using S2VNA software

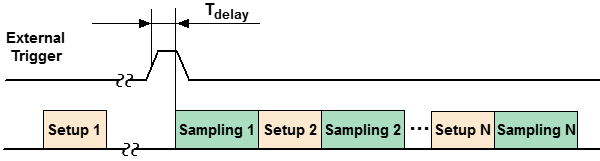

The external trigger delay sets the response delay with respect to the external trigger signal (See figure below).

The delay range and resolution depend on the Analyzer model (See corresponding datasheet).

Before Sampling, Point Trigger OFF

External Trigger Delay

Ext trigger

Delay 0s

To set the external trigger delay, use the following softkeys:

Stimulus > Trigger > Ext Trigger > Delay
