 Network Analyzers using S2VNA software

Instrument Series > Advanced Series

Advanced Series Block Diagrams and Connection Diagram

 Scroll Contact Us Home Prev Top Next More

Below are the block diagrams for the A2202, A2202-Fx, A2202-D, and A2202-DFx respectfully.

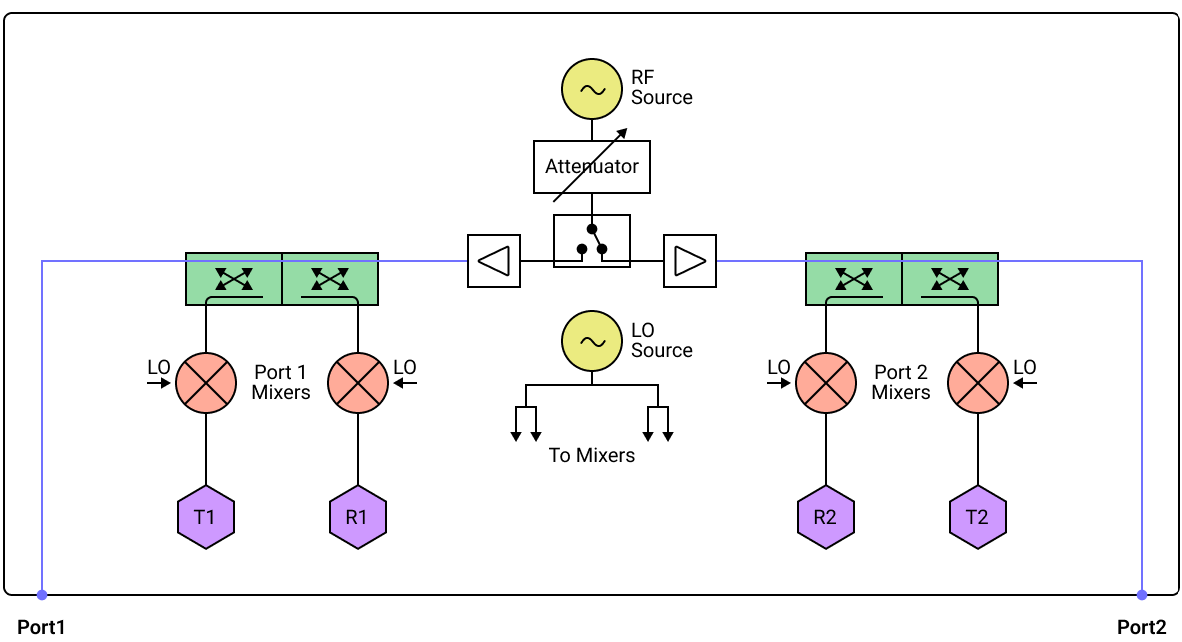

A2202 Block

A2202 Block Diagram

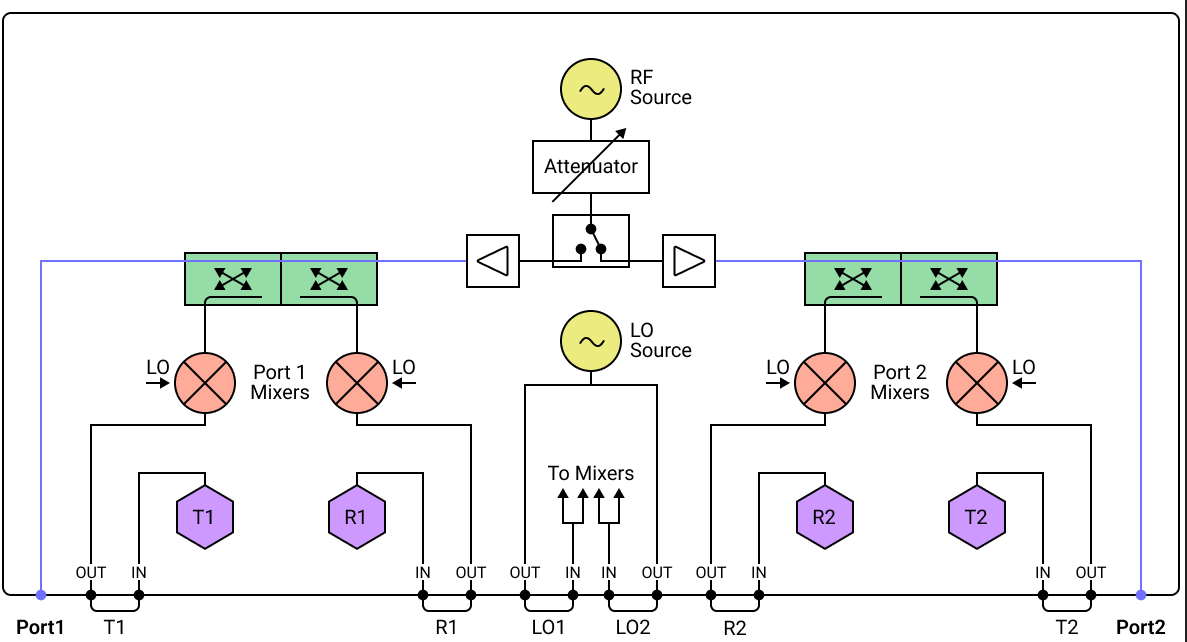

A2202-Fx Block

A2202-Fx Block Diagram

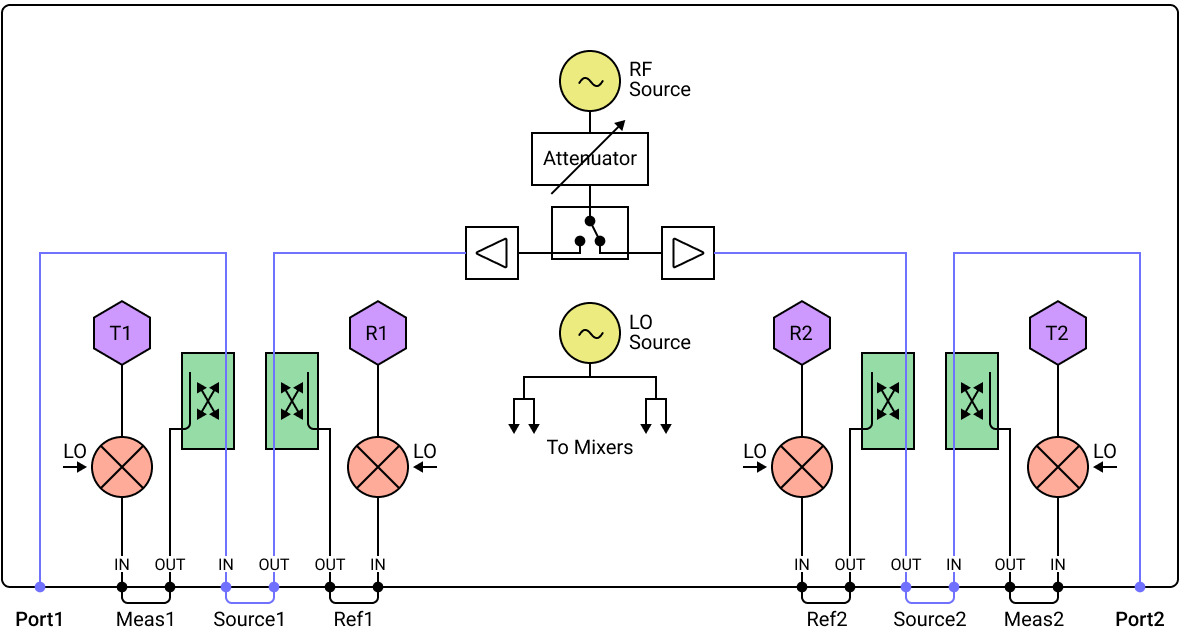

A2202-D Block

A2202-D Block Diagram

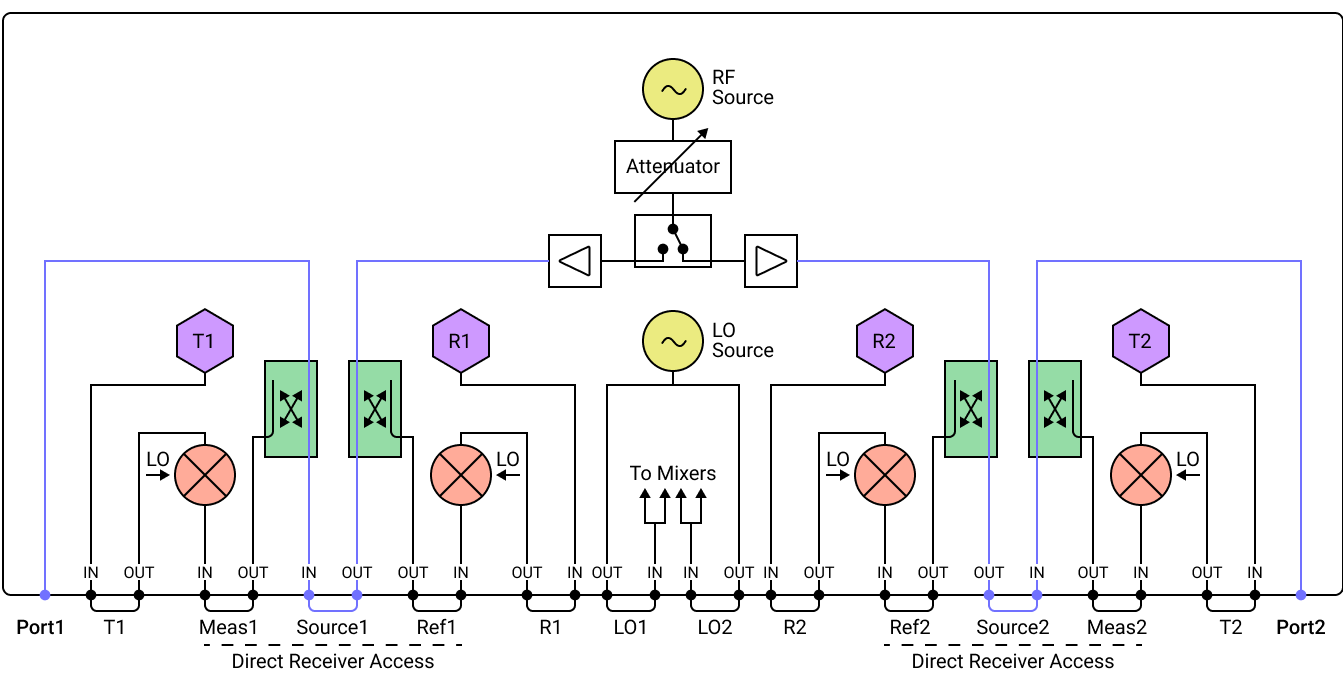

A2202-DFx Block

A2202-DFx Block Diagram

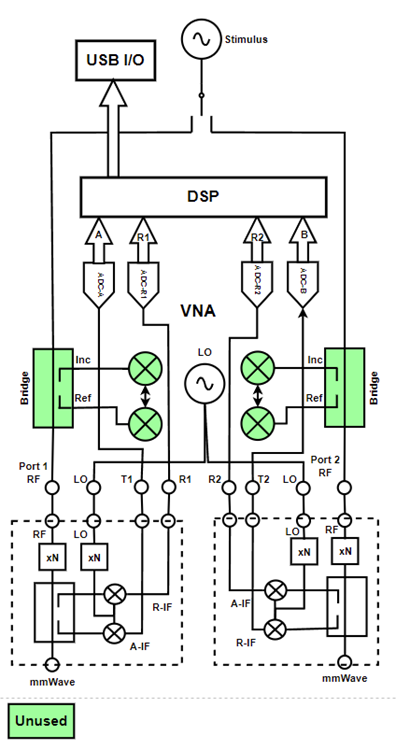

VNA to Extender Connection Diagram

A2202 to Extender Connection Diagram
